Fiat Scudo Factory Service Manual (1996-2006)02 · 10 Engine
02 · Engine

Engine cold

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Fuel system (1905 D) › Engine cold
10 EngineEngine cold

An automatic fast idle device fitted to the pump increases idle speed when the engine is cold.

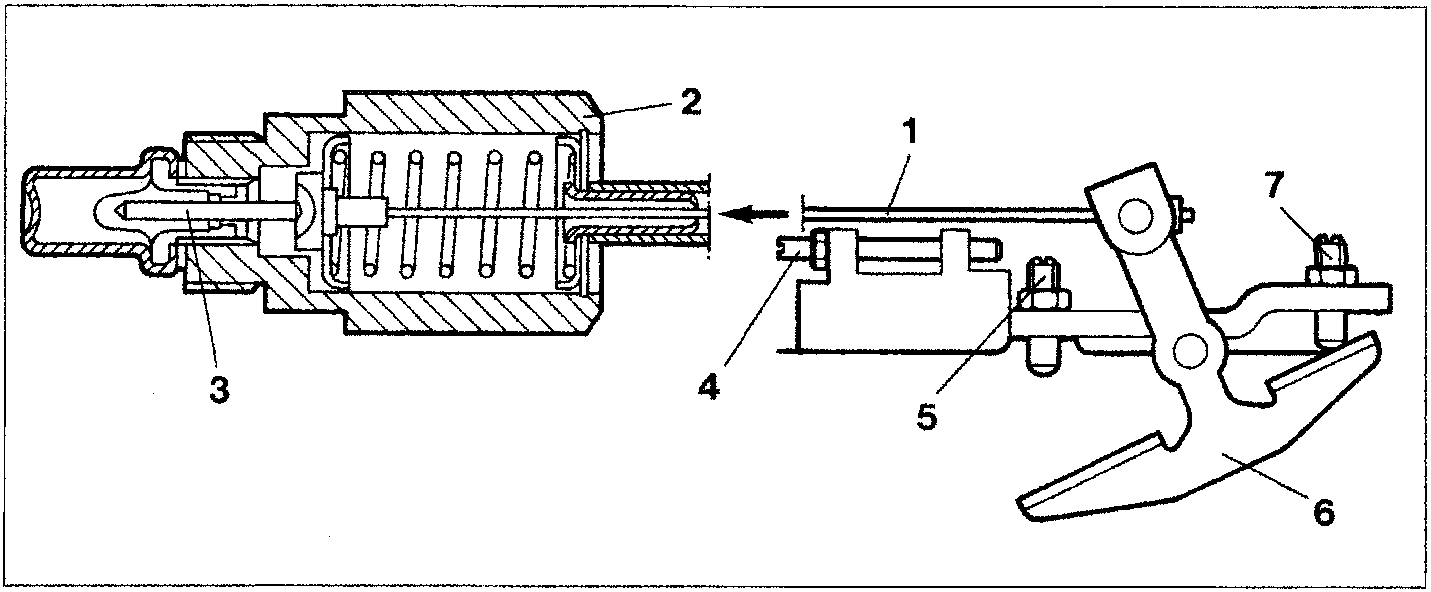

Engine cold

Diagram showing the TLA mechanism in the cold state with numbered parts 1 through 7

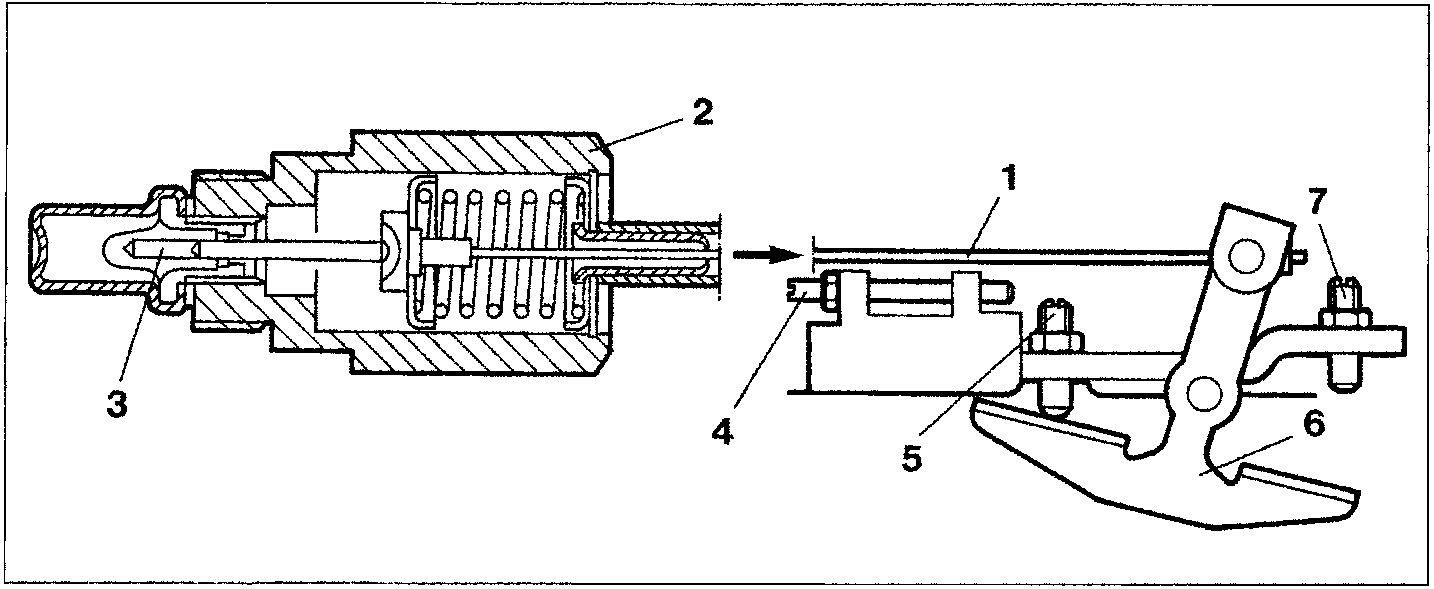

Engine warm

Diagram showing the TLA mechanism in the warm state with numbered parts 1 through 7
  1. Lead connecting thermostatic sensor to TLA control lever
  2. Thermostatic sensor
  3. Thermostatic sensor plunger
  4. Residual flow adjustment screw
  5. Warm idle adjustment screw
  6. TLA control lever
  7. Cold fast idle adjustment screw
