02 · Engine

Refitting (page 2 of 4)

Make
Fiat
Model
Scudo Factory Service Manual
Year
1996–2006
Section
Replacement operations on vehicle (1905 D)
10 EngineRefitting · page 2 of 4

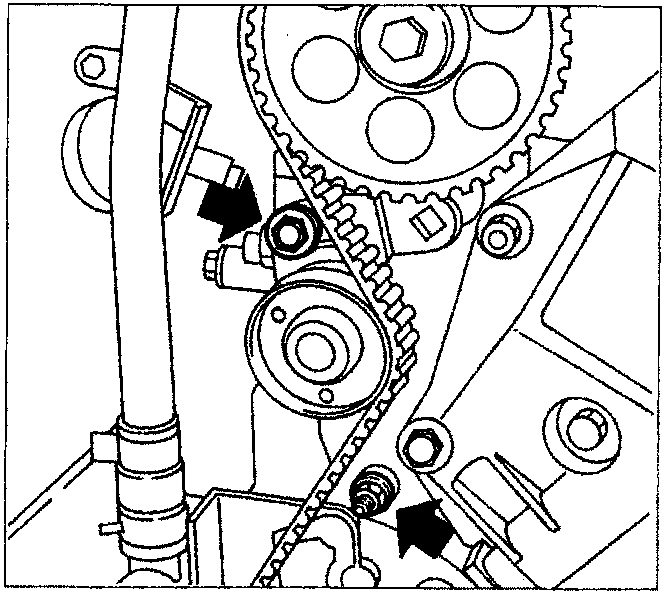

Diagram showing timing belt, crankshaft pulley, and tensioner mount bracket with arrowed retaining nut and bolt.
Finish refitting the timing belt by carrying out the following operations: - using a suitable spacer, fit Poly-V pulley retaining bolt provisionally to crankshaft; - remove flywheel retaining tool 1867030000 and crankshaft reference tool 1860863000; - loosen tensioner mount bracket pin retaining nut (arrowed) and bracket retaining bolt (arrowed) so that belt is put under tension by the tensioner rod; - remove the three bolts retaining the timing pulley and injection pump; - turn the crankshaft through two turns clockwise.

NOTE Never reverse engine rotation direction.

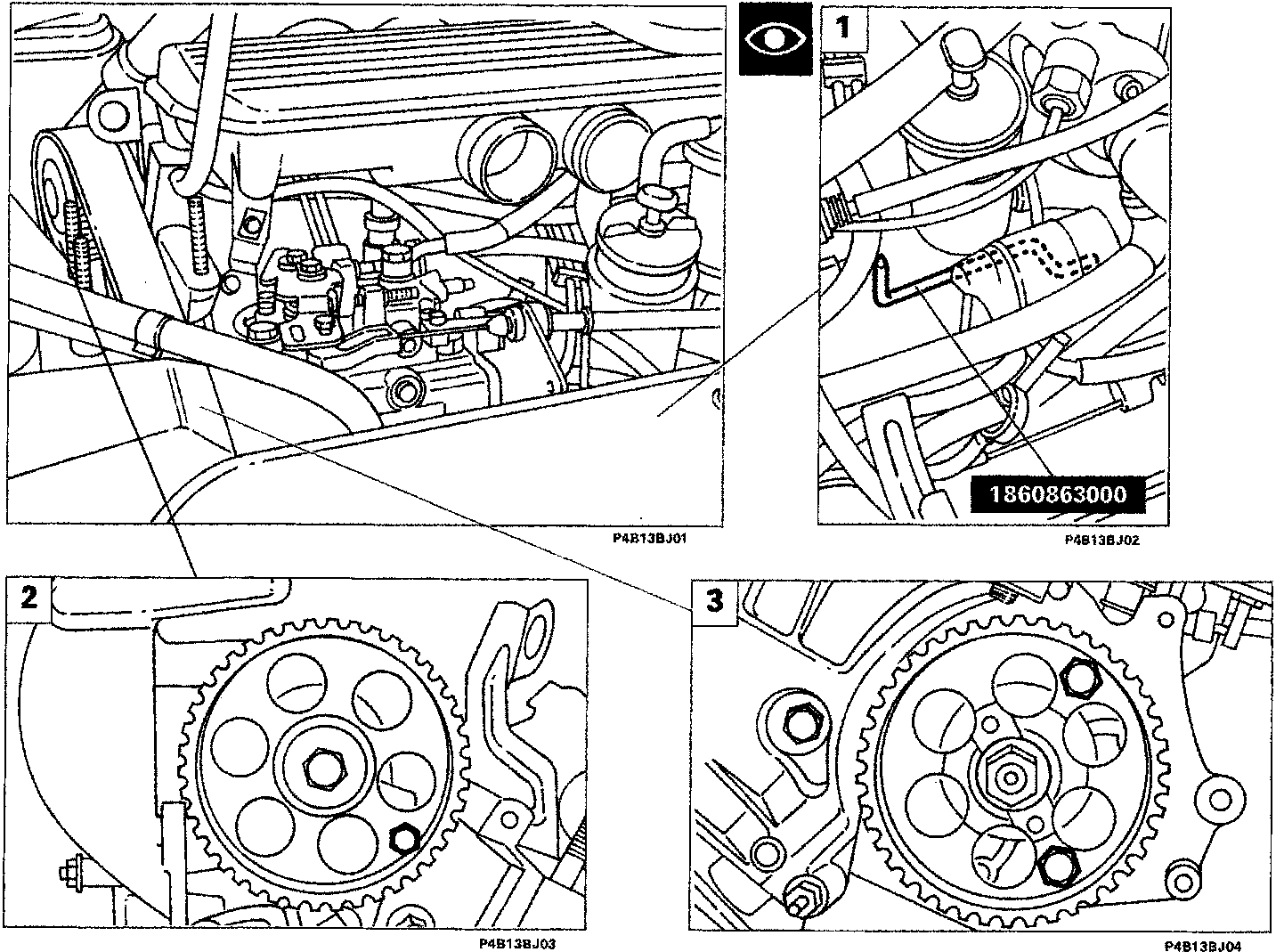

Engine bay view showing injection pump area (left), close-up of crankshaft reference tool 1860863000 in position (top right, key 1), camshaft timing gear with screw (bottom left, key 2), and injection pump pulley with bolts (bottom right, key 3).
Check timing setting by repositioning: 1. crankshaft reference tool 1860863000 in its seat on the flywheel; 2. screw M8x1.25x35 in camshaft; 3. two bolts M8x1.25x35 in the injection pump pulley.
