WIRING DIAGRAM (Standard specifications) (page 2 of 2)

Make

Fiat

Model

Scudo Factory Service Manual

Year

1996–2006

Section

Instrument panel

55 Electrical equipmentWIRING DIAGRAM (Standard specifications) · page 2 of 2

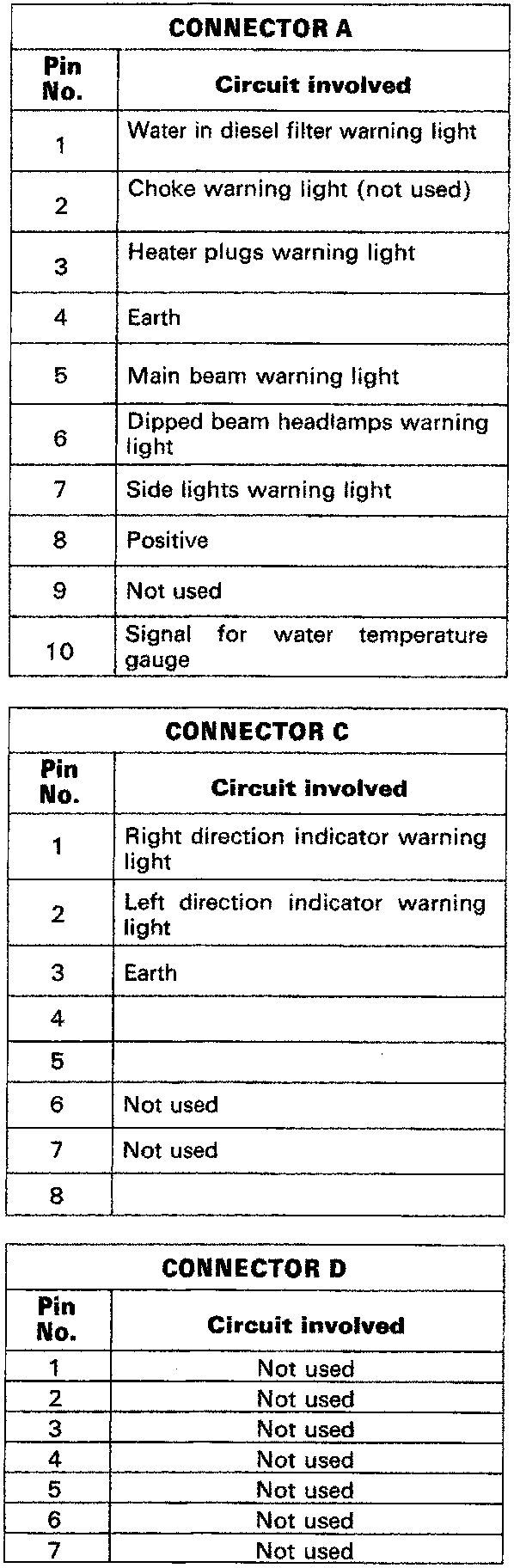

CONNECTOR A
Pin No.	Circuit involved
1	Water in diesel filter warning light
2	Choke warning light (not used)
3	Heater plugs warning light
4	Earth
5	Main beam warning light
6	Dipped beam headlamps warning light
7	Side lights warning light
8	Positive
9	Not used
10	Signal for water temperature gauge

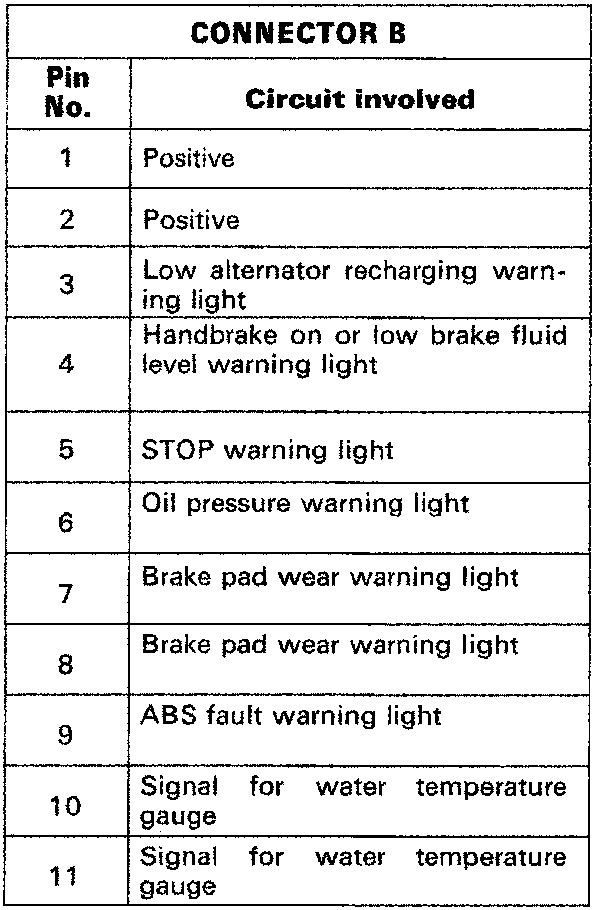

CONNECTOR B
Pin No.	Circuit involved
1	Positive
2	Positive
3	Low alternator recharging warning light
4	Handbrake on or low brake fluid level warning light
5	STOP warning light
6	Oil pressure warning light
7	Brake pad wear warning light
8	Brake pad wear warning light
9	ABS fault warning light
10	Signal for water temperature gauge
11	Signal for water temperature gauge

CONNECTOR C
Pin No.	Circuit involved
1	Right direction indicator warning light
2	Left direction indicator warning light
3	Earth
4
5
6	Not used
7	Not used
8

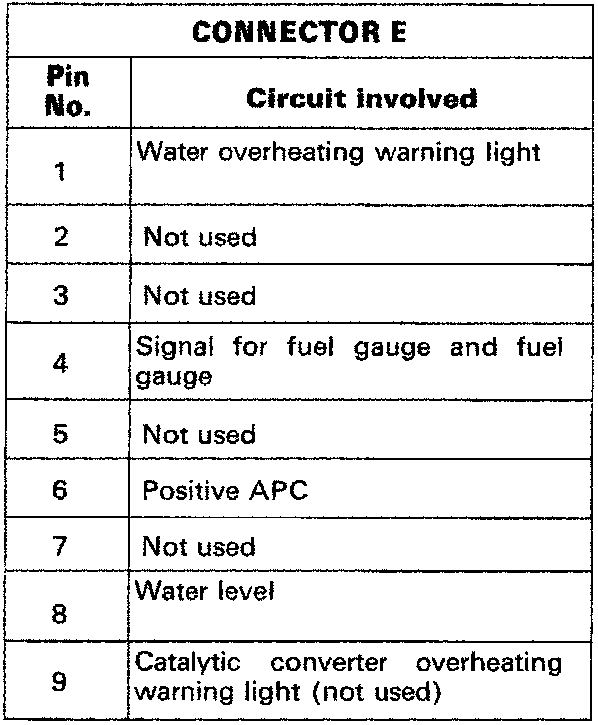

CONNECTOR E
Pin No.	Circuit involved
1	Water overheating warning light
2	Not used
3	Not used
4	Signal for fuel gauge and fuel gauge
5	Not used
6	Positive APC
7	Not used
8	Water level
9	Catalytic converter overheating warning light (not used)

CONNECTOR D
Pin No.	Circuit involved
1	Not used
2	Not used
3	Not used
4	Not used
5	Not used
6	Not used
7	Not used
