Central locking components

• The C.P.H. remains in the unlocked condition;
• defect in the levers in the door locks;
• the actuators are momentarily inhibited.

NOTE All the operations relating to a possible failure of the system can only be carried out with the diagnostic equipment connected to the special diagnostic socket.

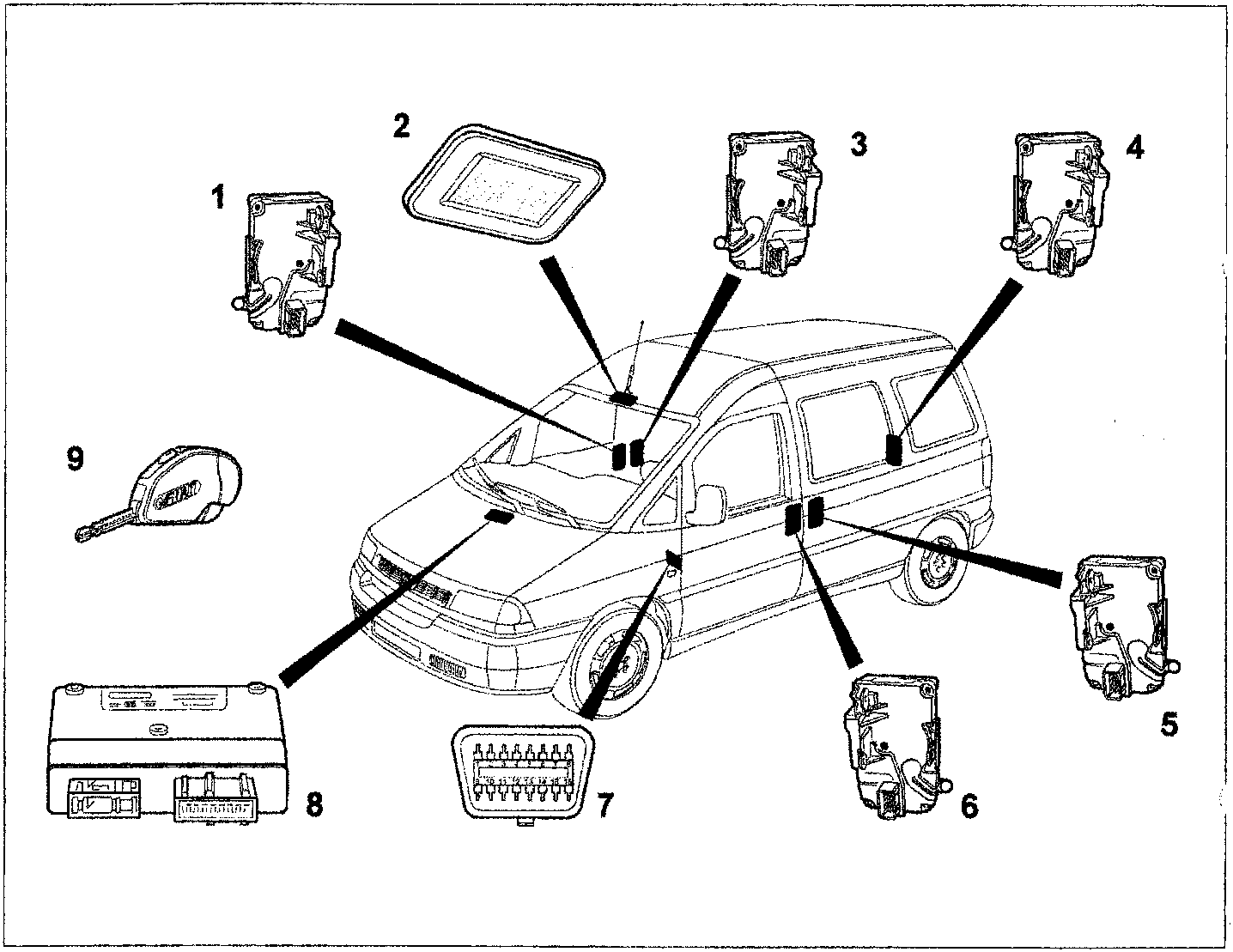

Central locking components

1. Central locking passenger front motor.
2. Vehicle interior front courtesy light.
3. Central locking passenger rear motor.
4. Central locking luggage compartment door motor.
5. Central locking driver's rear motor.
6. Central locking driver's front motor.
7. Diagnostic socket for central locking.
8. Passenger compartment protection control unit (C.P.H.)
9. Central locking key.
