55 Electrical equipmentKey container retaining pin
In order to allow this operation it is necessary to apply the key dismantling procedure already described previously and also carry out the following operations:
Key container retaining pin

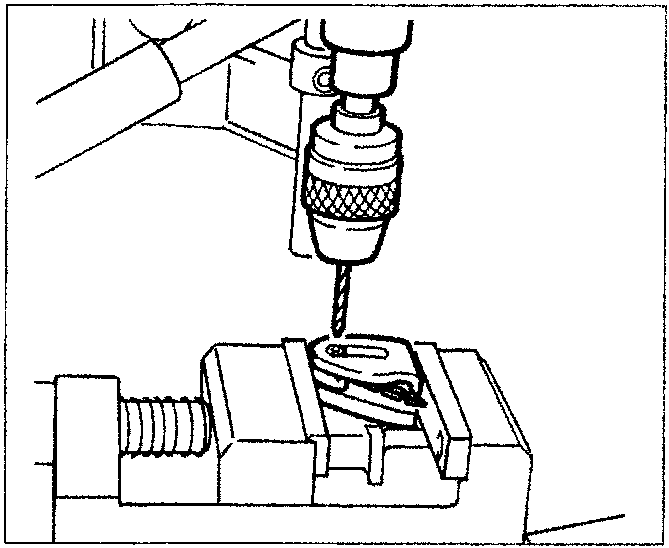

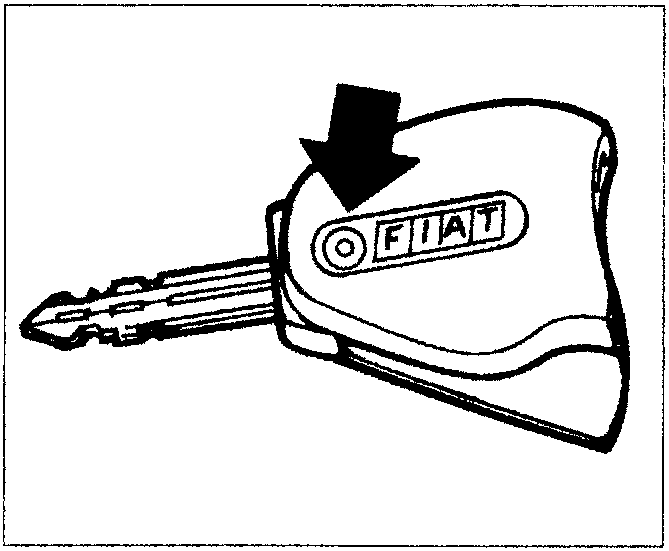

- Break the shell containing the key using a drill on the manufacturer’s logo;

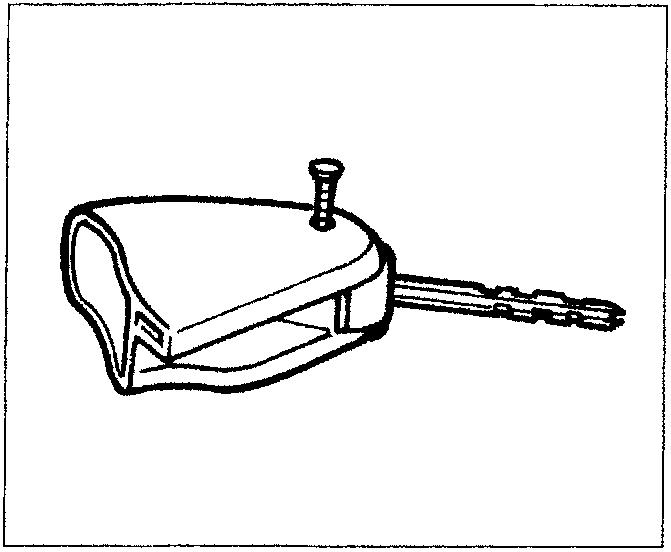

- extract the pin from its housing;
