Transponder receiver (aerial)

Transponder receiver (aerial)

This component, located inside the ignition switch, has the task of recognizing the transponder code supplied with the ignition key.

The dialogue between the key and the receiver is electro-magnetic.

The receiver, connected directly to the passenger compartment protection control unit (C.P.H.), provides the key access code.

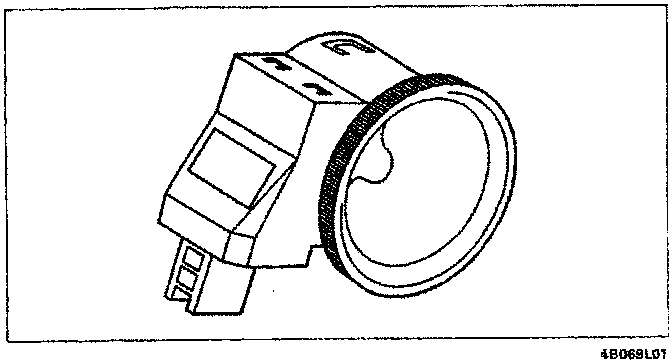

Perspective view of transponder receiver

Location of Fiat-CODE components

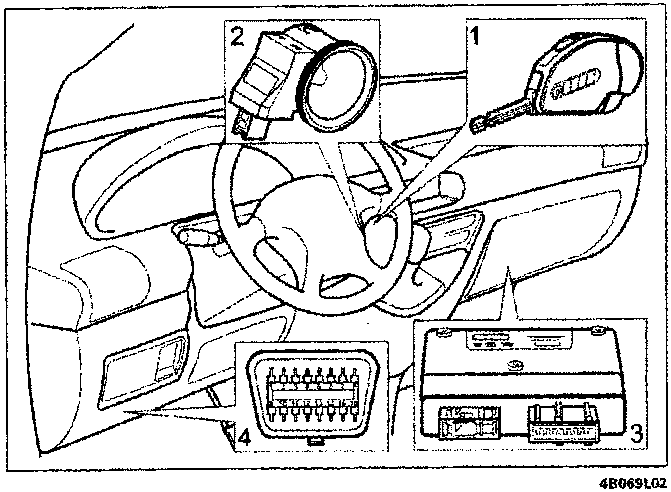

Left hand drive versions

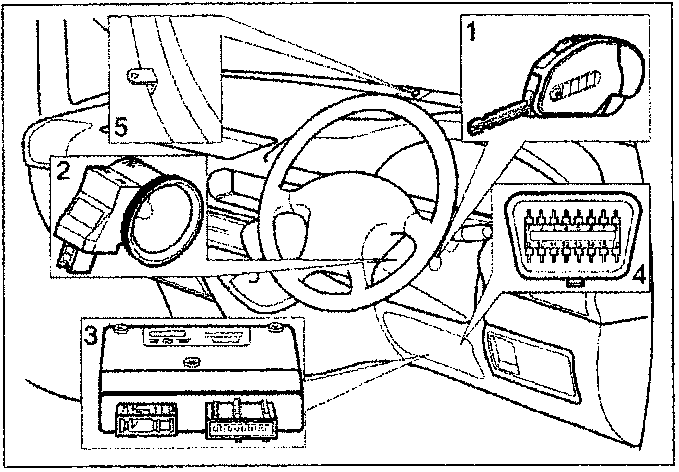

Right hand drive versions

Key to components

1. Key with transponder.
2. Fiat-CODE aerial in ignition switch.
3. Passenger compartment protection control unit (C.P.H.).
4. Diagnostic socket.
5. Fiat-CODE on warning light (only for right hand drive versions).
