RIGHT SIDE SLIDING REAR SEAT - R.R.
Removing
- 5530B56 BATTERY DRIP TRAY COVER - R.R.
Disconnect the battery negative terminal.
- 7040B10 load platform (luggage platform) trim - r+r
Remove the front and rear parcel shelf.

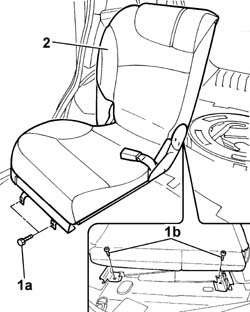

1. Undo the front (1a) and rear (1b) fixing bolts.
2. Remove the seat.
Disconnect the electrical connector for the rear Side Bag.
| Name | Connector | |
|---|---|---|
| Right rear Side Bag | Q42 |
| Name | Connector | |
|---|---|---|
| Left rear Side Bag | Q43 |
Refitting
Connect the electrical connector for the rear Side Bag.
| Name | Connector | |
|---|---|---|
| Right rear Side Bag | Q42 |
| Name | Connector | |
|---|---|---|
| Left rear Side Bag | Q43 |
Fit the seat in position and tighten the bolts fixing it to the floor to torque.
| Fastening | Component | Ø | Value (daNm) | |
|---|---|---|---|---|
| Bolt | COMPLETE REAR SEAT | M10 x 1.25 | 3.2 |
Fit the front and rear parcel shelf.
- 7040B10 load platform (luggage platform) trim - r+r
Connect the battery negative terminal.
