Body fittingsSki flap in rear seat squab rr
Ski flap in rear seat squab rr
Removing

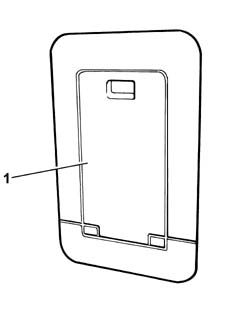

1. Open the ski holder flap.

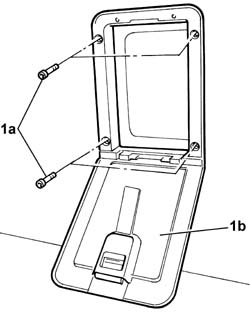

1. Undo the fixing bolts (1a) and remove the ski holder flap (1b).
Refitting
Check that the flap is not damaged.
Position the ski holder flap and tighten the fixing bolts.
Close the ski holder flap.
