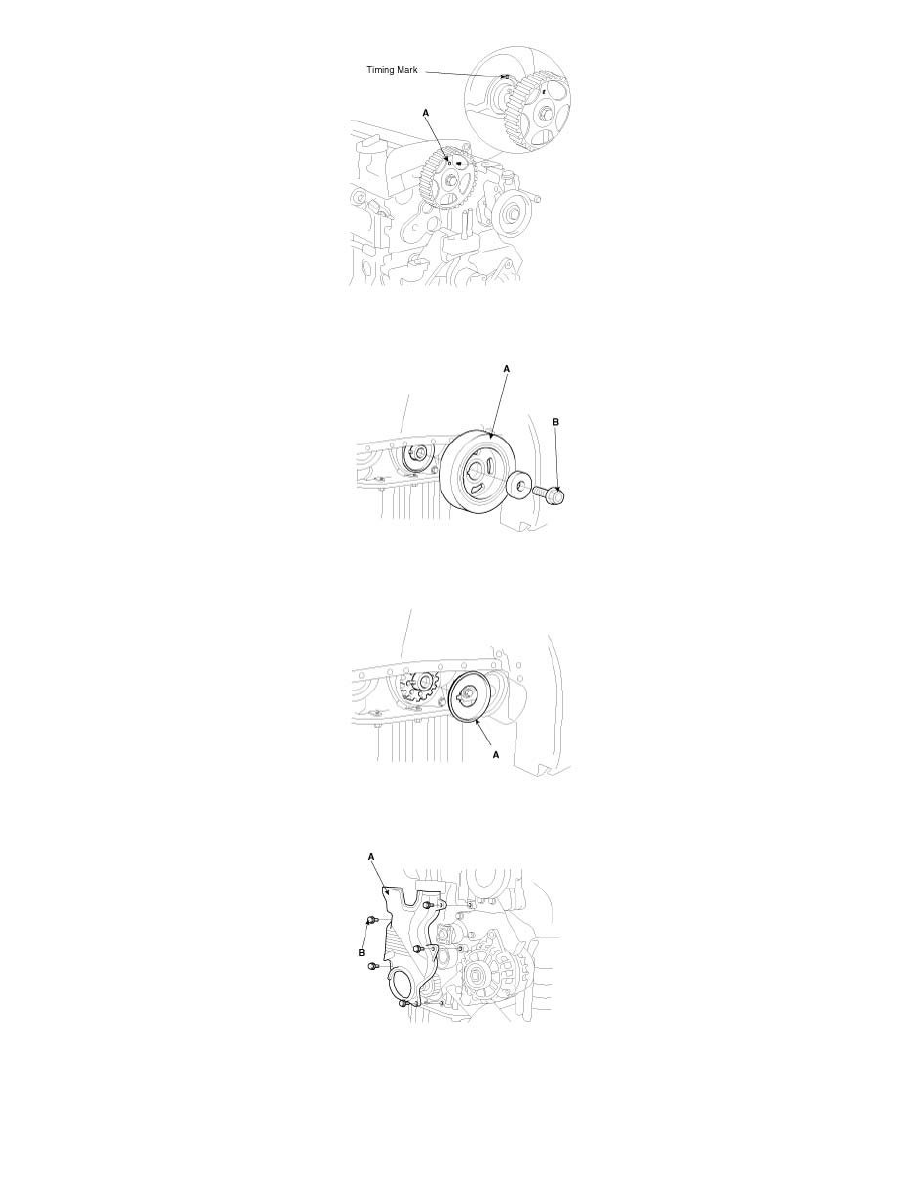

12. Remove the crankshaft pulley bolt (B) and crankshaft pulley (A).
13. Remove the crankshaft flange (A).
14. Remove the 5 bolts (B) and timing belt lower cover (A).
15. Remove the timing belt tensioner (A) and timing belt (B).
