Evap canister and purge control valve

EVAP CANISTER AND PURGE CONTROL VALVE

Service repair no - 17.15.13

Remove

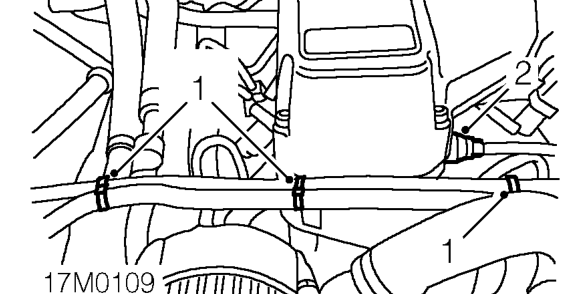

1. Remove 3 clips securing purge pipe to coolant hose.
2. Depress tags and disconnect purge pipe from plenum chamber.

Do not carry out further dismantling if component is removed for access only.

Refit

10. Fit bracket to purge valve.
11. Position assembly, connect vapour separator
12. Locate purge valve bracket and expansion hose

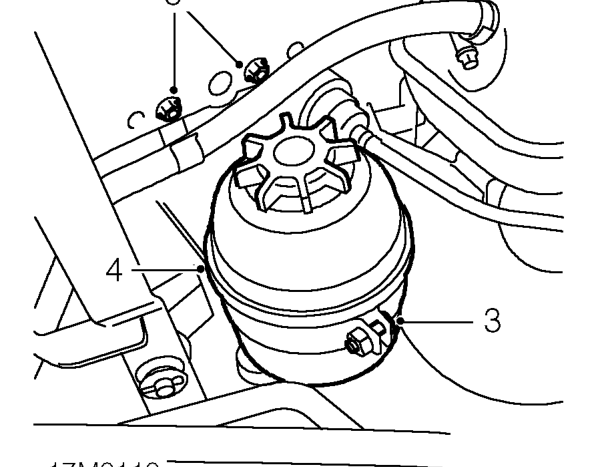

3. Remove PAS reservoir clamp bracket bolt.
4. Open clamp and release reservoir from bracket. 13. Fit and tighten nuts.
5. Remove 2 nuts securing bracket to wing. 14. Locate PAS reservoir to bracket clip, compress
15. Connect purge pipe to plenum chamber.
16. Secure purge pipe to coolant hose with clips.

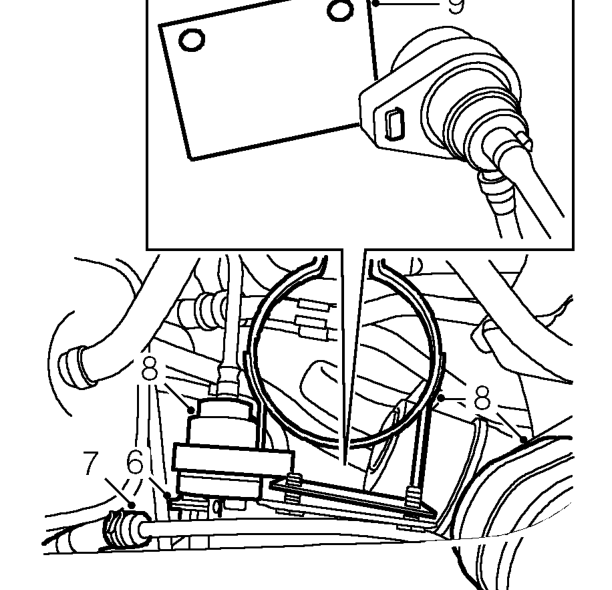

6. Release bracket from wing and disconnect multiplug from purge valve.
7. Release clip and disconnect fuel tank vapour separator pipe from canister pipe.
8. Move PAS reservoir aside, release and remove charcoal canister, purge valve and bracket assembly.
9. Remove bracket from purge valve.

pipe to canister pipe and secure with clip.

clip to studs and locate assembly to wing.

clip, fit bolt and tighten to 8 Nm, 6 lb ft.
