Emission controlVapour separator

VAPOUR SEPARATOR

Service repair no - 17.15.19

Remove

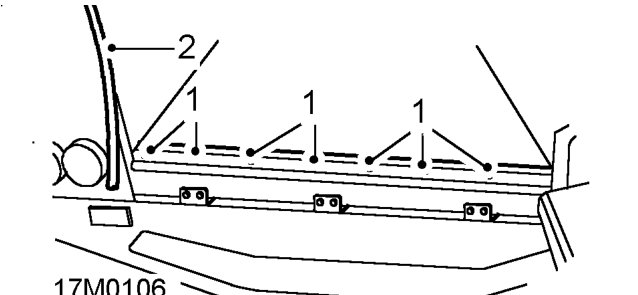

Vapour separator – Service repair no - 17.15.19
  1. Remove 7 screws securing floor carpet rear 10. Remove vapour separator. retainer.
  2. Release lower section of door sealing rubber on Refit one side.
  3. Remove carpet retainer. 11. Position vapour separator and connect pipes.
  4. Using assistance, align vapour separator and fit

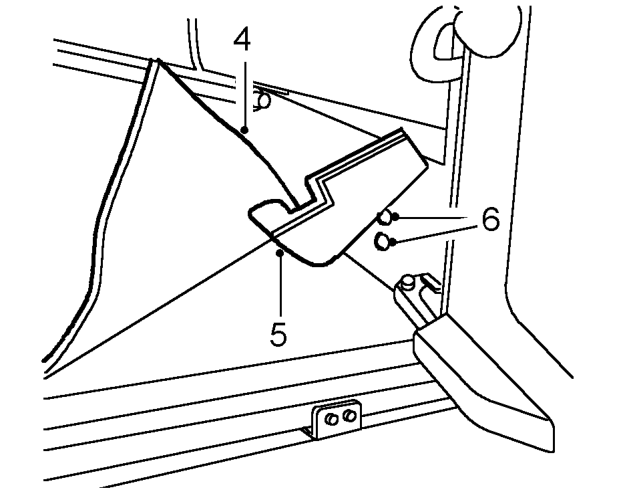

Vapour separator – Using assistance, align vapour separator and fit
  1. Apply adhesive to side carpet and body.
  2. Fold down side and floor carpets.
  3. Fit carpet retainer and fit and tighten screws.
  4. Secure door sealing rubber.
  5. Fold floor carpet back on RH side.
  6. Release RH side carpet and move aside to reveal 2 screws securing vapour separator.
  7. Remove 2 screws securing vapour separator.

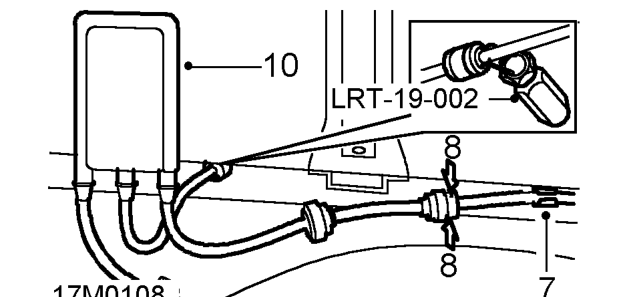

Vapour separator – Remove 2 screws securing vapour separator.
  1. Release vapour separator pipe from clip on fuel pipe.
  2. Depress 2 lugs on vapour separator connector and disconnect pipe.
  3. Using tool LRT-19-002 depress collar at green end of ’speedfit’ connector and disconnect pipe.

and tighten screws.
