Rear axle and final driveRear hub assembly · page 1 of 2

REAR HUB ASSEMBLY

Service repair no - 64.15.14.

Rear hub assembly – Service repair no - 64.15.14.

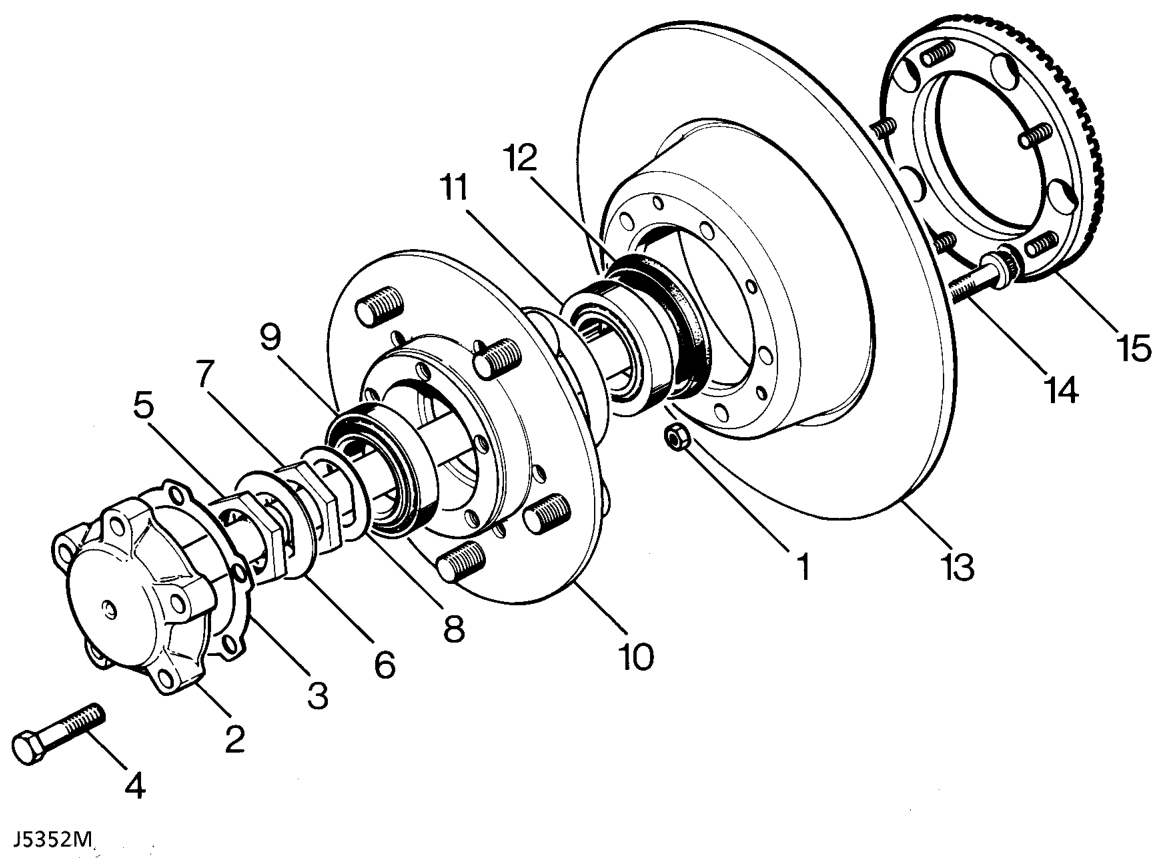

REAR HUB COMPONENTS

  1. Nut - sensor ring
  2. Axle shaft. 10. Hub.
  3. Axle shaft joint washer. 11. Inner bearing.
  4. Axle shaft retaining bolt - 5 off. 12. Grease seal.
  5. Lock nut. 13. Brake disc.
  6. Lock washer. 14. Disc retaining bolt - 5 off.
  7. Hub adjusting nut. 15. Sensor ring - engine management
  8. Spacing washer.
  9. Outer bearing.
