CAUTION: Plug the connections. (page 2 of 3)

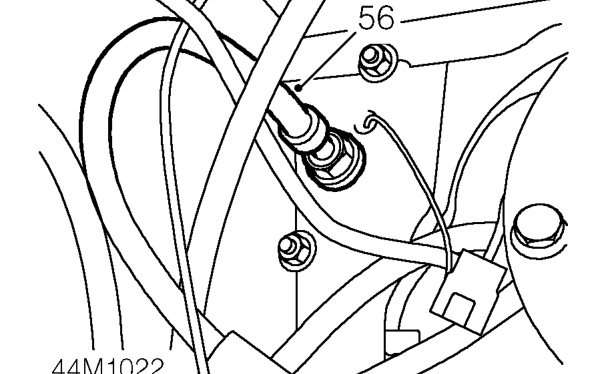

56. Release hand brake outer cable from body.

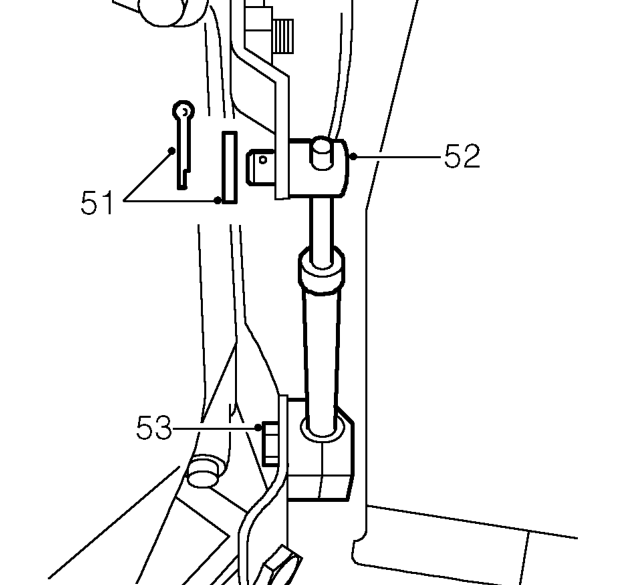

51. Remove split pin from selector cable yoke and collect washer. Discard split pin.
52. Release yoke from lever.
53. Remove bolt securing selector outer cable clamp to transfer box LH mounting.

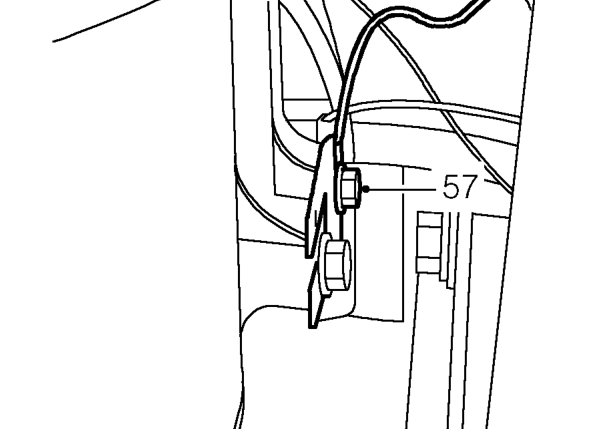

57. Remove bolt securing earth lead to RH side of
58. Fit transmission cradle
59. Fit and tighten bolts securing cradle to jack.
60. Remove 2 lower bolts securing transfer box rear
61. Collect hand brake cable heat shield.
62. Raise jack and align cradle to transmission.
63. Refit previously removed transfer box rear cover
54. Remove nut securing oxygen sensor multiplug bracket from transfer box earth bolt and collect bracket.

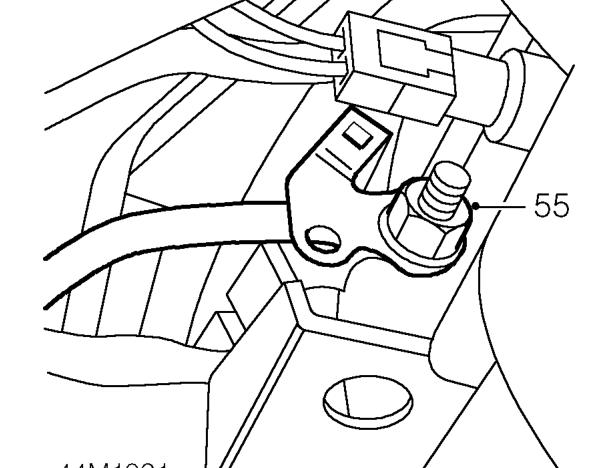

55. Remove nut securing earth strap to transfer box and release strap.

transfer box. LRT-99-008A to transmission jack.

cover.

bolts to secure cradle.
