Fluid pan gasket and screen (page 2 of 2)

20. Position both exhaust heat shields and refit TORQUE CONVERTER chassis cross-member. Secure fuel pipes to retaining clip. Service repair no - 44.17.04
21. Refit catalytic converter assembly See EMISSION CONTROL, Repair, Front Remove pipe/catalytic converter; Refit
22. Connect battery.
23. Refill transmission using correct grade of fluid See LUBRICANTS, FLUIDS AND CAPACITIES, Information, Recommended Lubricants and Fluids.
24. Apply parking brake and with selector at ’P’, run engine at idle.
25. Apply footbrake, from ’P’, move selector to position ’1’ and back to ’N’. Check fluid level, this must be between the level marks. Top-up as necessary.

Refit

1. Remove gearbox and transfer box assembly, See Gearbox and transfer box assembly

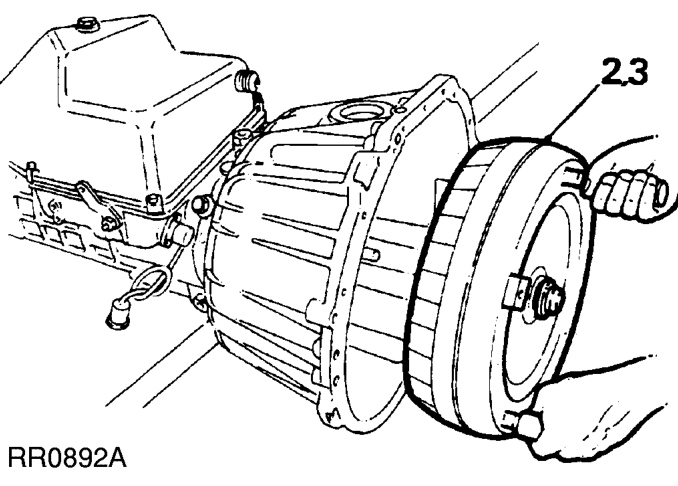

2. Place gearbox on bench. Remove torque converter using torque converter handle LRT-44-010, taking care not to damage torque converter/oil pump housing oil seal.
3. Fit NEW torque converter using torque converter handles LRT-44-010. Check dimension from converter fixing boss to converter housing face is 50 mm (1.968 in). This shows converter is correctly seated in housing.
4. Refit gearbox and transfer box assembly; Refit See Gearbox and transfer box assembly
