TD5 Defender
26
COOLING SYSTEM
4
REPAIR

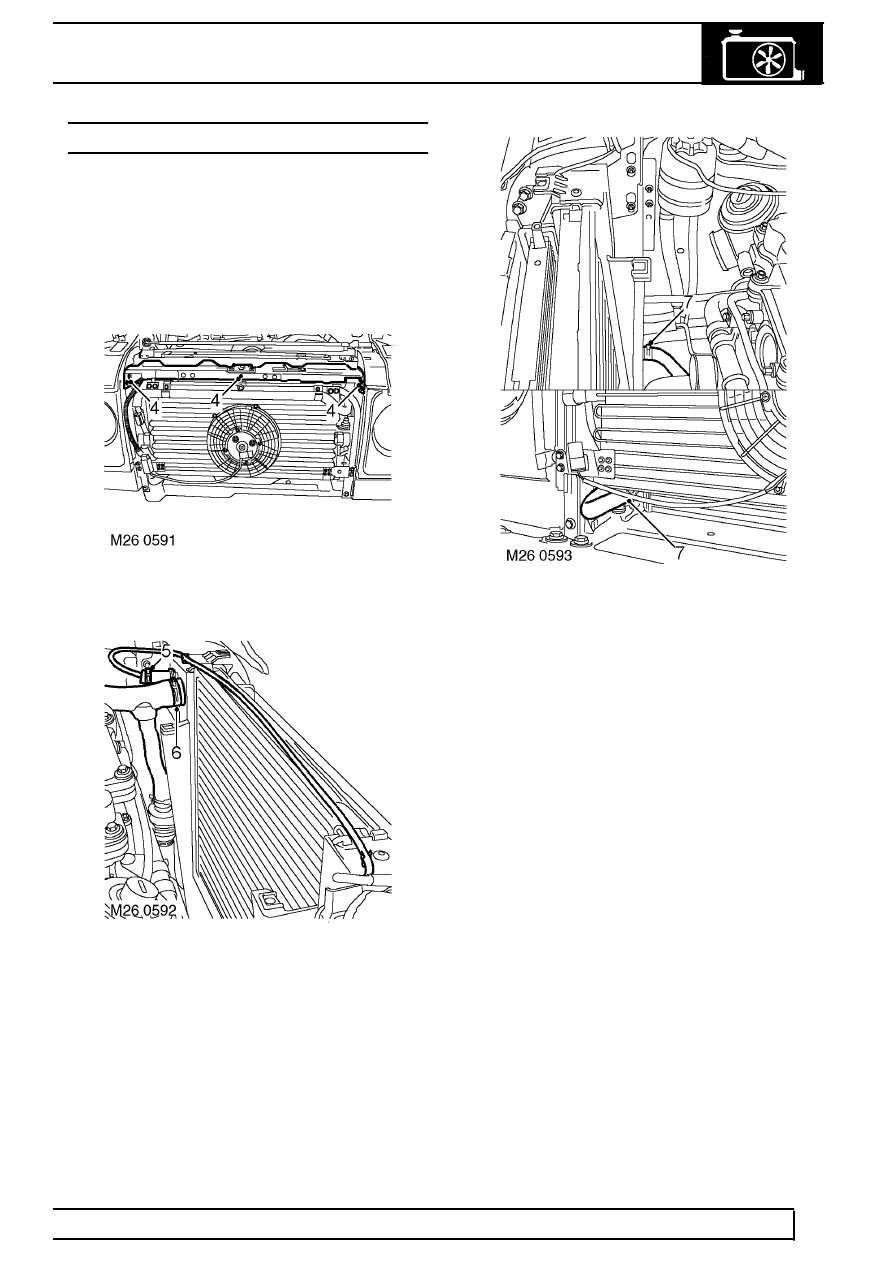

9. Remove 4 bolts securing RH and LH radiator
mounting brackets to body and remove brackets.
10. Release clip and release air hose from
turbocharger inlet pipe.
11. Release bottom hose from bracket on lower
cooling fan cowl.
12. Remove radiator assembly and collect lower
mounting spacers.
13. Remove 2 bolts and remove intercooler from
radiator. Collect 2 nuts from radiator side
brackets.
14. Remove 2 rubber mountings from intercooler.
15. Remove 2 screws and remove lower cooling fan
cowl from radiator.
16. Remove 2 rubber mountings from bottom of
radiator.
