Discovery II
AIR CONDITIONING
82-30
REPAIRS
Compressor - V8
$% 82.10.20
Remove
1. Depressurise air conditioning system.
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery,
recycling and recharging.
2. Remove auxiliary drive belt.
REPAIRS, Belt - auxiliary drive.

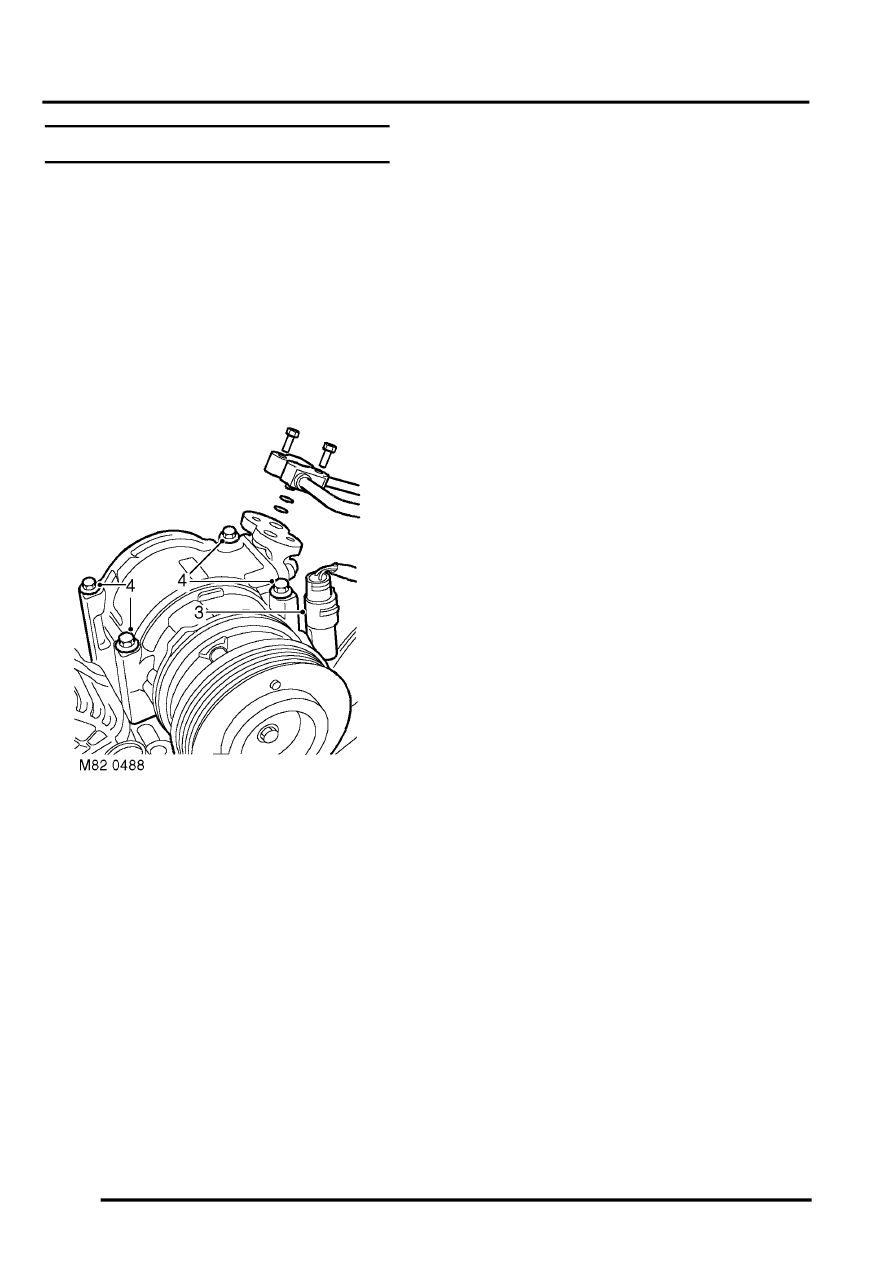

3. Disconnect multiplug from compressor.
4. Remove 2 bolts securing air conditioning pipes
to compressor and discard 'O' rings.
CAUTION: Always fit plugs to open
connections to prevent contamination.
5. Remove 4 bolts securing compressor to
mounting bracket.
6. Remove compressor.
Refit
1. Calculate the quantity of refrigerant oil required.
Conditioning Compressor Replacement.
2. Clean compressor dowels and dowel holes.
3. Position compressor to mounting bracket and
tighten bolts to 25 Nm (18 lbf.ft).
4. Remove caps from compressor and pipe
connections.
5. Clean compressor and pipe connections.
6. Lubricate new 'O' rings with refrigerant oil and
fit to compressor.
7. Position A/C pipes to compressor and tighten
bolts to 10 Nm (7 lbf.ft).
8. Connect multiplug to compressor.
9. Fit auxiliary drive belt.
REPAIRS, Belt - auxiliary drive.
10. Recharge air conditioning system.
RECOVERY, RECYCLING AND
RECHARGING, Refrigerant recovery,
recycling and recharging.
