Discovery II
NAVIGATION SYSTEM
REPAIRS
87-29
REPAIRS
Interface electronic control unit (ECU) -
remote control
$% 86.53.15

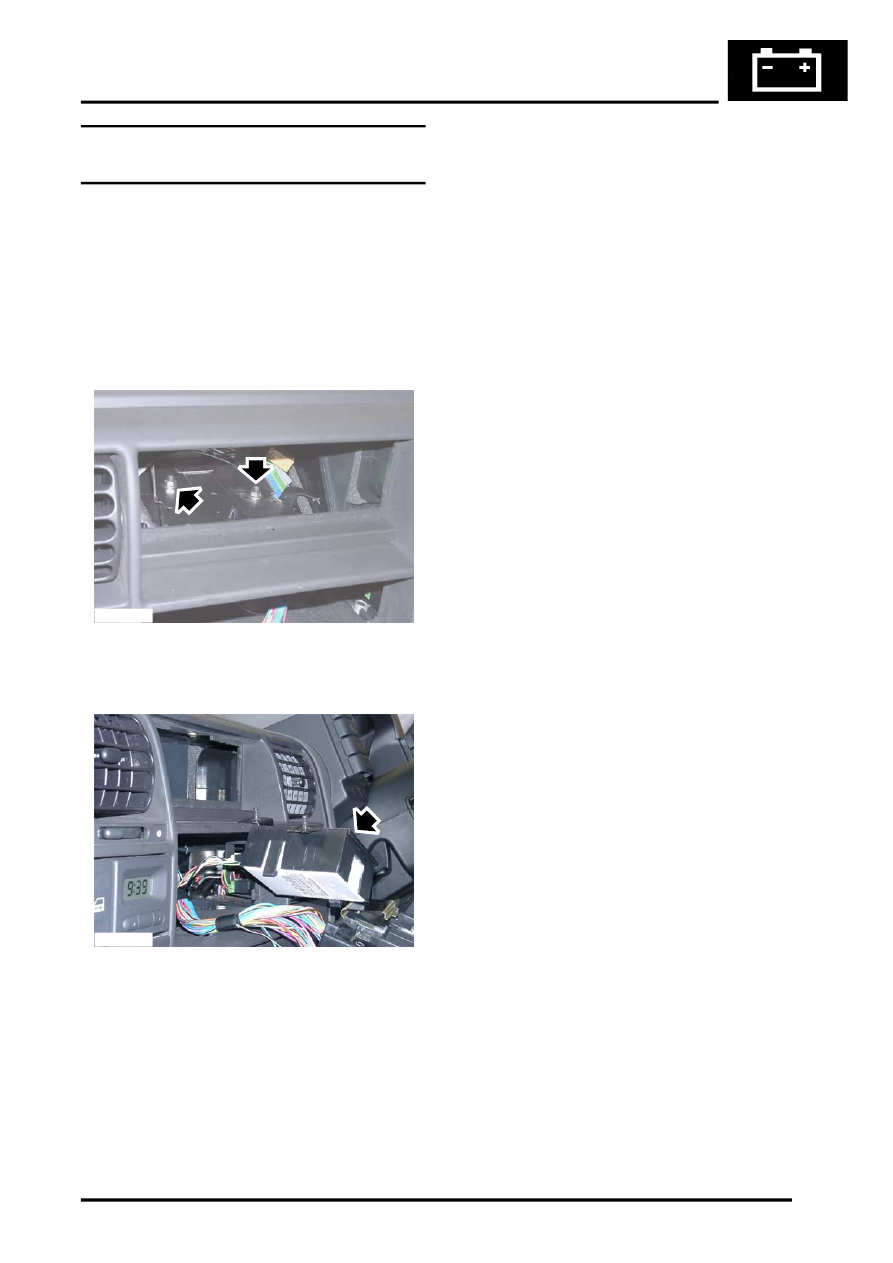

Remove
1. Remove navigation display unit.
2. Remove automatic temperature control unit.
AIR CONDITIONING, REPAIRS, ECU
3. Remove 2 nuts securing interface carrier
bracket, carefully pull bracket out of fascia.
4. Release interface ECU from bracket,
disconnect multiplug and remove ECU.
Refit
1. Secure interface ECU in bracket and connect
multiplug.
2. Carefully position carrier bracket in fascia,
secure with nuts and tighten to 10 Nm (7 lbf.ft).
3. Fit automatic temperature control unit.
AIR CONDITIONING, REPAIRS, ECU
4. Fit navigation display unit.
M86 5760
M86 5762
