Land Rover Freelander Workshop Manual (1998-2000)14 · Clutch
14 · Transmission

All models.

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › All models.
ClutchAll models.

All models.

All models.

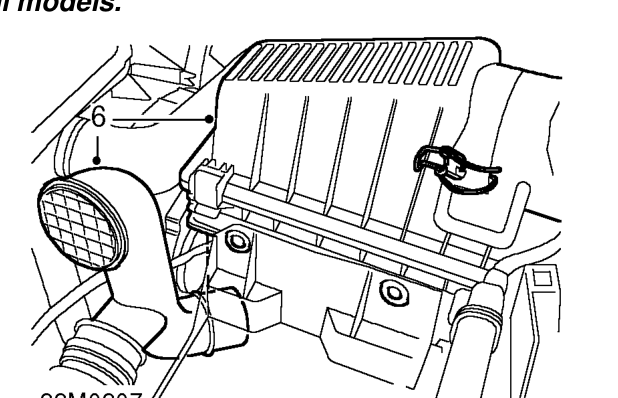

  1. Release air cleaner from battery carrier and intake hose.
  2. Position air cleaner aside.
All models. – Position air cleaner aside.

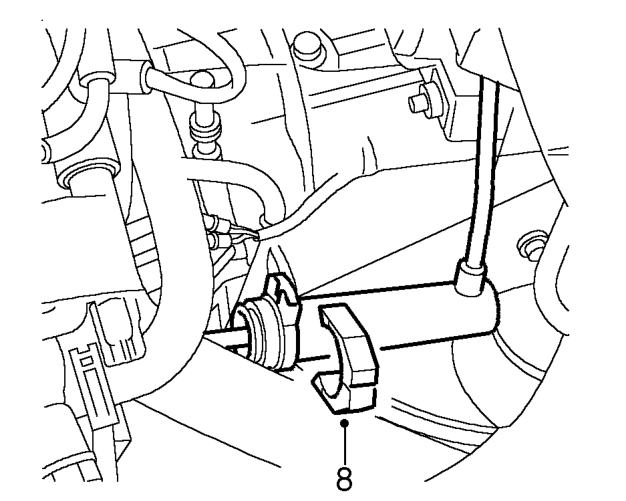

  1. Remove ’C’ clip from slave cylinder and release cylinder from support bracket.
All models. – Remove ’C’ clip from slave cylinder and release cylinder from support bracket.

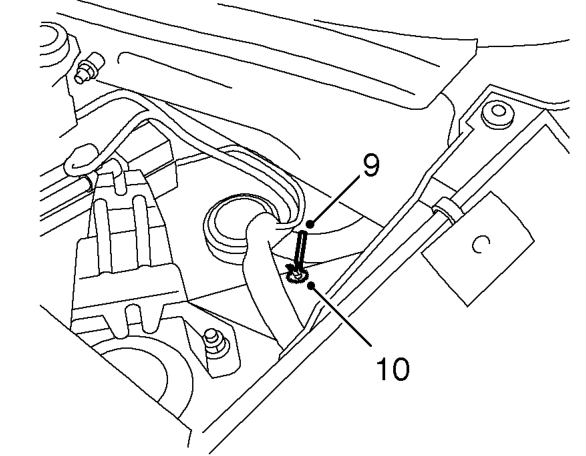

  1. Carefully cut cable tie, release main harness and position aside.
  2. Remove and discard cable tie.
All models. – Remove and discard cable tie.

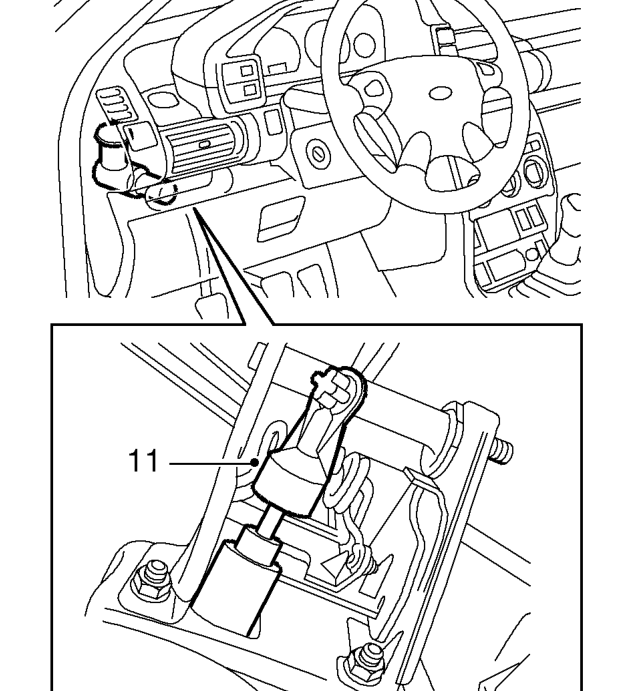

  1. Release master cylinder push rod from clutch pedal.
