Land Rover Freelander Workshop Manual (1998-2000)14 · Clutch
14 · Transmission

Diesel models

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Diesel models
ClutchDiesel models

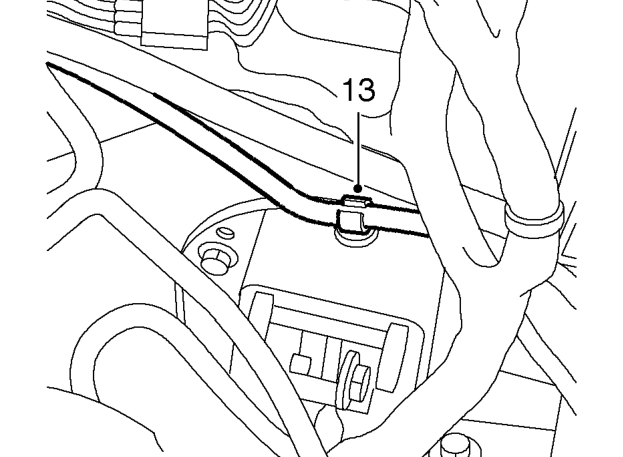

  1. Rotate master cylinder clockwise and release from bulkhead.
Rotate master cylinder clockwise and release from bulkhead.
  1. Noting the position of the clutch pipe, release pipe from clip.
  2. Manoeuvre the hydraulic assembly from vehicle.

Refit

  1. Manoeuvre the hydraulic assembly into position and secure in clip.
  2. Position master cylinder, rotate anti-clockwise to secure in position.
  3. Connect push rod to clutch pedal.
  4. Using a NEW cable tie, position and secure main harness.
  5. Position slave cylinder in support bracket and secure with ’C’ clip.
  6. Position air cleaner to battery carrier and air intake hose.

Diesel models

  1. Connect multiplug to MAF sensor.
  2. Position fuel filter.

Petrol models

  1. Position charcoal cannister and connect multiplug.

All models

  1. Fit and tighten bolts securing air cleaner to 10 Nm.
  2. Operate clutch to confirm operation of system.
