Diesel models

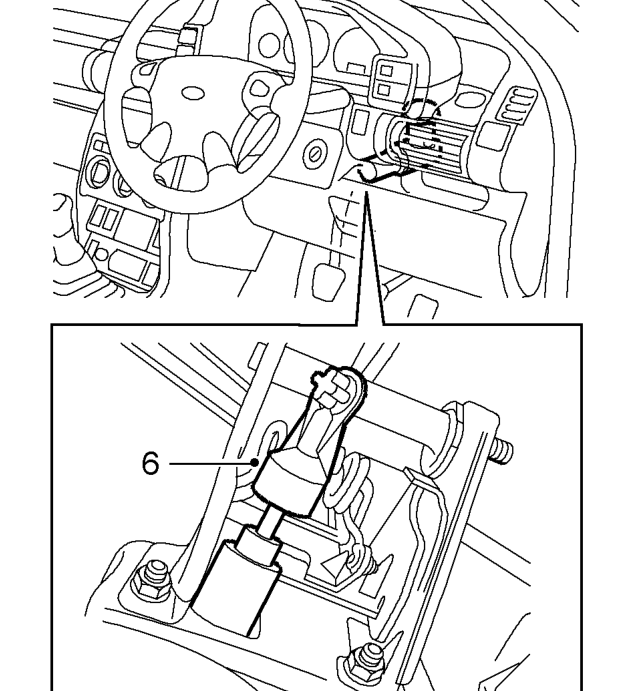

6. Release master cylinder push rod from clutch pedal.
7. Rotate master cylinder clockwise and release from bulkhead.
8. Noting the position of the clutch pipe, release pipe from clips.
9. Manoeuvre the hydraulic assembly from vehicle.

Refit

1. Manoeuvre the hydraulic assembly into position and secure in clips.
2. Position master cylinder, rotate anti-clockwise to secure in position.
3. Connect push rod to clutch pedal.
4. Position slave cylinder in support bracket and secure with ’C’ clip.
5. Position air cleaner to battery carrier and air intake hose.

Diesel models

6. Connect multiplug to MAF sensor.

All models

7. Fit and tighten bolts securing air cleaner to 10 Nm.
8. Operate clutch to confirm operation of system.
