Land Rover Freelander Workshop Manual (1998-2000)14 · Clutch
14 · Transmission

Hydraulic assembly - LHD

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Hydraulic assembly - LHD
ClutchHydraulic assembly - LHD

HYDRAULIC ASSEMBLY - LHD

Service repair no - 33.15.03

Remove

Hydraulic assembly - lhd – Service repair no - 33.15.03

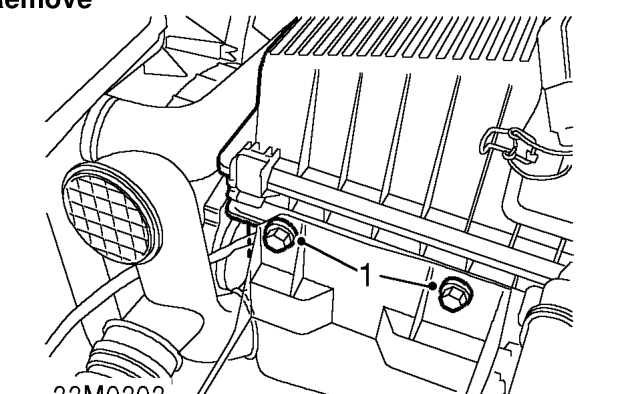

  1. Remove 2 bolts securing air filter.

Diesel models.

Diesel models. – Remove 2 bolts securing air filter.

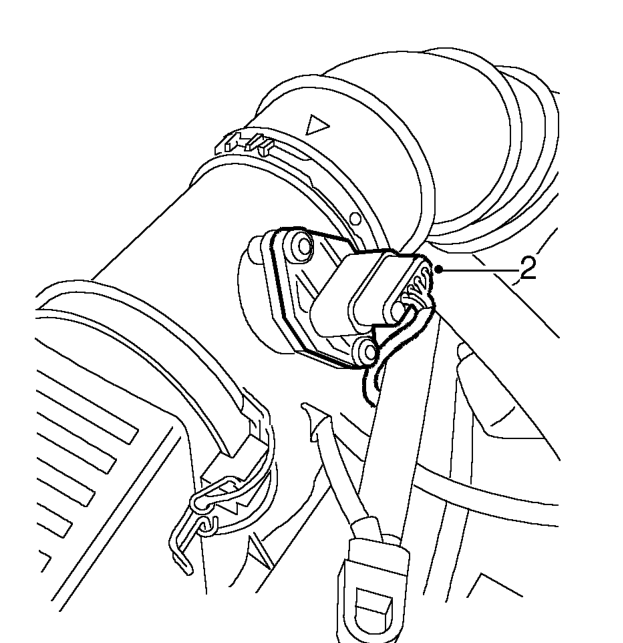

  1. Disconnect multiplug from MAF sensor.
Diesel models. – Disconnect multiplug from MAF sensor.

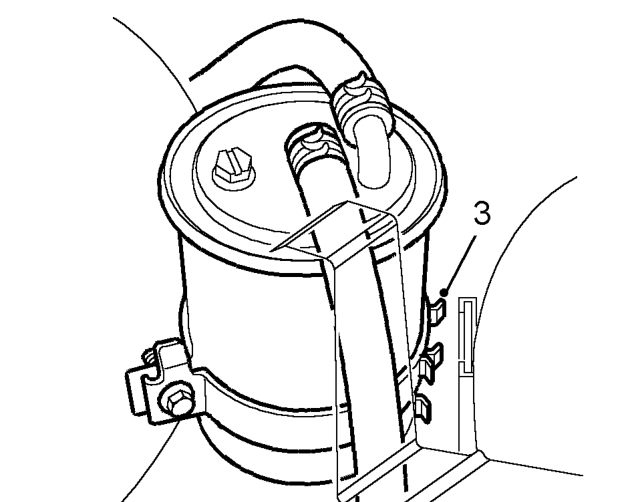

  1. Release fuel filter and position aside.

Petrol models.

Petrol models. – Release fuel filter and position aside.

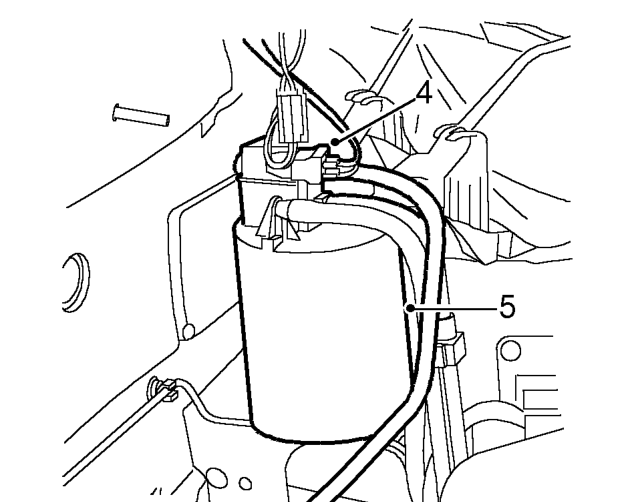

  1. Disconnect multiplug from charcoal cannister.
  2. Release cannister and position aside.
