ClutchHydraulic assembly - RHD

HYDRAULIC ASSEMBLY - RHD

Service repair no - 33.15.03

Remove

Hydraulic assembly - rhd – Service repair no - 33.15.03

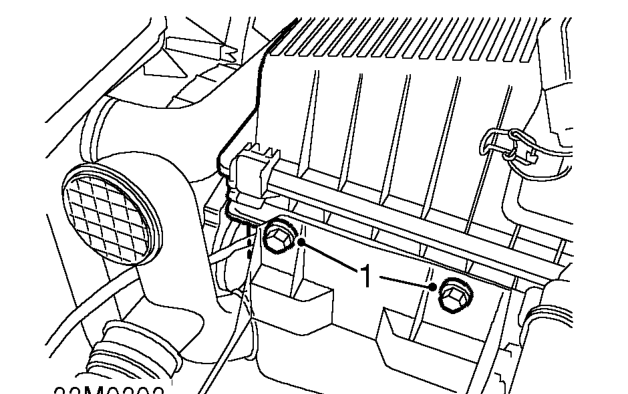

  1. Remove 2 bolts securing air filter.

Diesel models.

Diesel models. – Remove 2 bolts securing air filter.

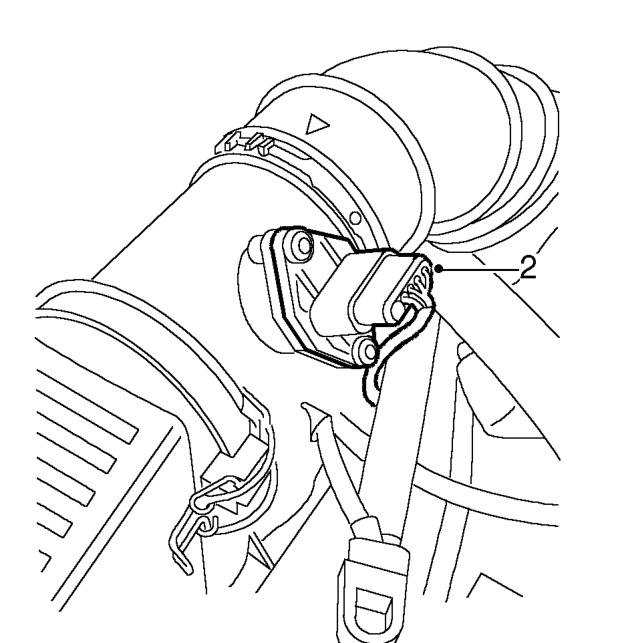

  1. Disconnect multiplug from MAF sensor.

All models.

All models. – Disconnect multiplug from MAF sensor.

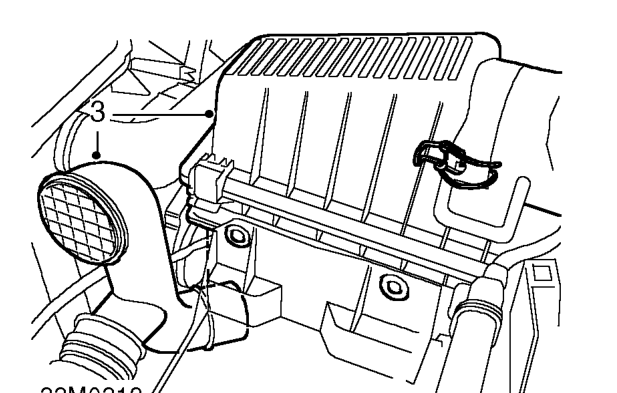

  1. Release air filter from battery carrier and intake hose.
  2. Position air filter aside.
All models. – Position air filter aside.

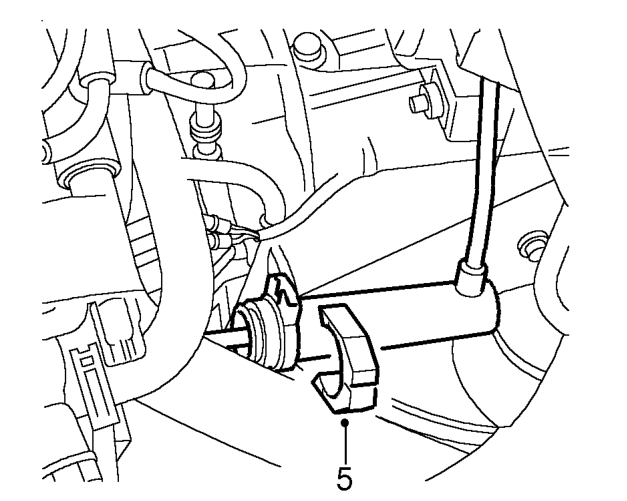

  1. Remove ’C’ clip from slave cylinder and release cylinder from support bracket.
