Fuel - rail

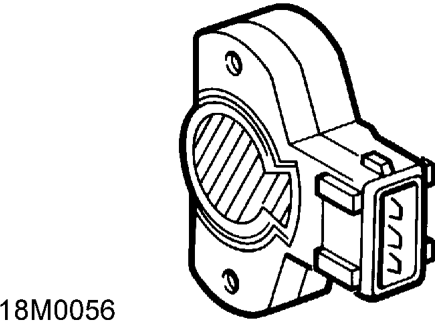

CAUTION: The TP sensor can easily be damaged during fitting. When pressing the sensor onto throttle spindle, use fingers only and apply pressure only to the area shown shaded in the illustration.

3. Rotate TP sensor in an anti-clockwise direction to align fixing holes.

CAUTION: Do not rotate TP sensor in a clockwise direction and ensure that it is not rotated beyond its internal stops.

4. Fit TP sensor specification plate.
5. Fit NEW Torx screws and wave washers, tighten Torx screws to 1.5 Nm.

CAUTION: Do not exceed specified torque figure.

6. Connect multiplug to TP sensor.
7. Operate throttle cable cam 2 or 3 times and ensure that full travel to the throttle open and the throttle closed positions is available.
8. Connect battery earth lead.

NOTE: A ’throttle initialisation’ procedure MUST be carried out using TestBook whenever the TP sensor is removed or renewed.

FUEL - RAIL

Service repair no - 19.60.04

The procedure for renewing the fuel rail is identical to renewing the injectors. See this section.
