Land Rover Freelander Workshop Manual (1998-2000)08 · Engine management system - MEMS
08 · Engine

Sensor - engine coolant temperature (ect)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs › Sensor - engine coolant temperature (ect)
Engine management system - MEMSSensor - engine coolant temperature (ect)

SENSOR - ENGINE COOLANT TEMPERATURE (ECT)

Service repair no - 18.30.10

Remove

  1. Disconnect battery earth lead.

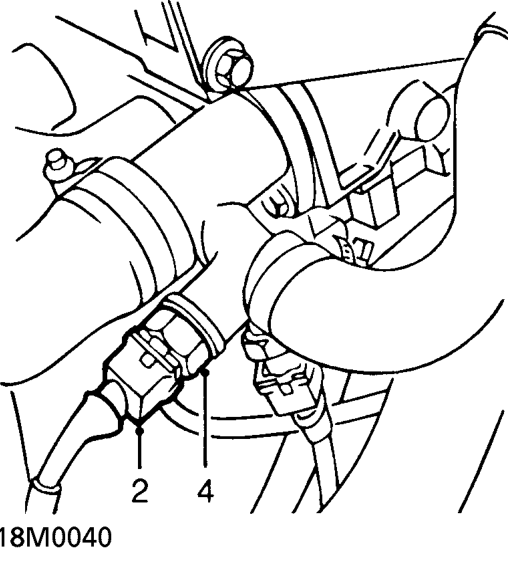

Sensor - engine coolant temperature (ect) – Disconnect battery earth lead.
  1. Disconnect multiplug from ECT sensor.
  2. Position drain tin to collect spillage.
  3. Remove ECT sensor.

Refit

  1. Clean threads of ECT sensor.
  2. Apply Loctite 577 to ECT sensor.
  3. Fit ECT sensor and tighten to 15 Nm.
  4. Connect multiplug to ECT.
  5. Connect battery earth lead.
  6. Top-up coolant. See COOLING SYSTEM - ’K’ SERIES, Adjustments.

SENSOR - CRANKSHAFT POSITION (CKP)

Service repair no - 18.30.12

Remove

  1. Disconnect battery earth lead.

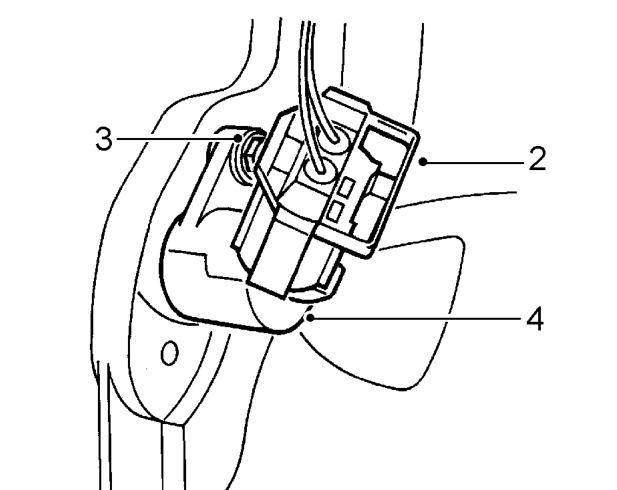

Sensor - crankshaft position (ckp) – Disconnect battery earth lead.
  1. Disconnect multiplug from CKP sensor.
  2. Remove bolt securing CKP sensor to flywheel housing.
  3. Remove CKP sensor.

Refit

  1. Clean CKP sensor and mating face of flywheel housing.
  2. Position CKP sensor, fit bolt and tighten to 6 Nm.
  3. Connect multiplug to CKP sensor.
  4. Connect battery earth lead.
