THROTTLE CABLE

Service repair no - 19.20.06

Remove

  1. Release cable adjusting nut from abutment bracket.
  2. Release inner cable from cam.

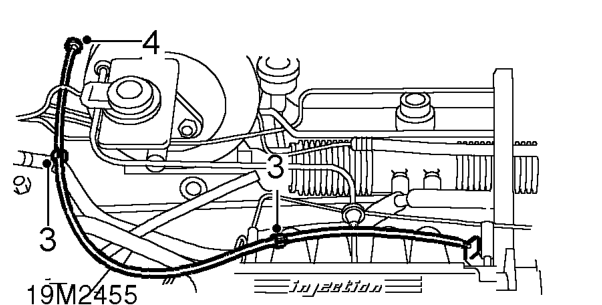

Throttle cable – Release inner cable from cam.
  1. Release cable from retaining clips.
  2. Release cable from bulkhead.

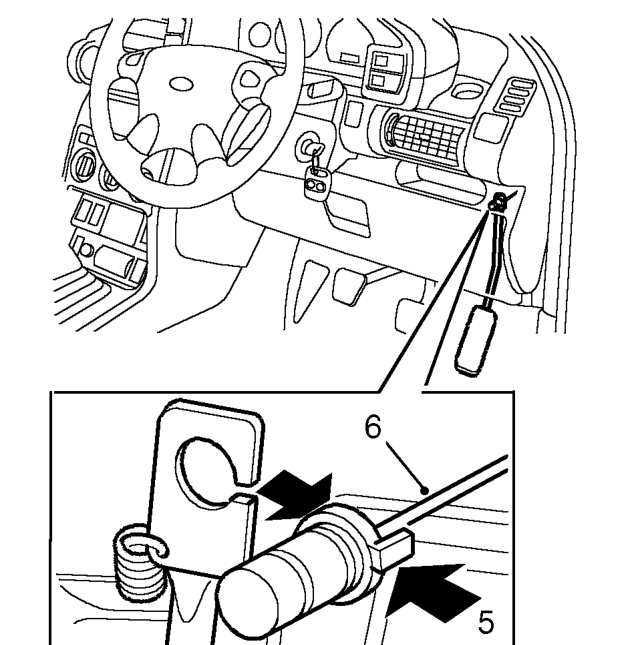

Throttle cable – Release cable from bulkhead.
  1. Depress nylon clips to disconnect throttle cable from pedal.
  2. Remove throttle cable.

Refit

  1. Feed NEW cable through bulkhead and connect inner cable to pedal.
  2. Smear rubber grease on both sides of the rubber seal and secure cable to bulkhead.
  3. Refit throttle cable to retaining clips.
  4. Connect throttle cable to throttle cam.
  5. Adjust throttle cable. See Adjustments.
