Engine management system - MEMSSpark plugs

SPARK PLUGS

Service repair no - 18.20.02

Remove

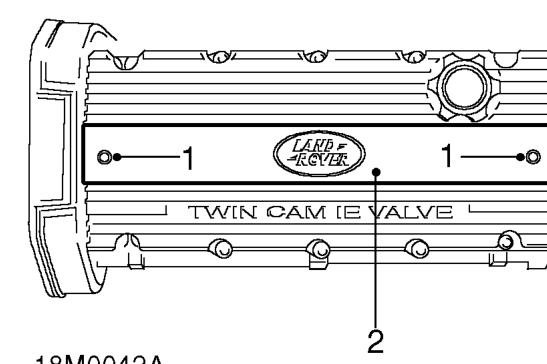

Spark plugs – Service repair no - 18.20.02
  1. Remove 2 screws retaining h.t. lead cover.
  2. Remove h.t. lead cover.

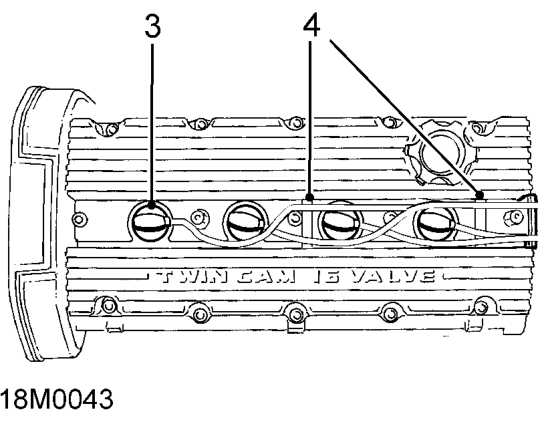

Spark plugs – Remove h.t. lead cover.
  1. Disconnect h.t. leads from spark plugs.
  2. Release h.t. lead securing rubbers from camshaft cover and place h.t. leads aside.

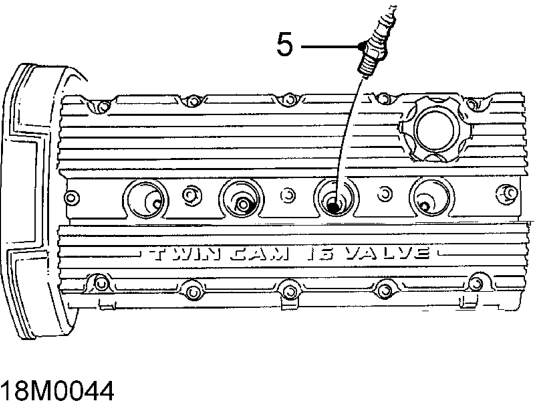

Spark plugs – Release h.t. lead securing rubbers from camshaft cover and place h.t. leads aside.
  1. Using a 16 mm spark plug socket remove 4 spark plugs.

Refit

  1. Fit terminals to NEW spark plugs.

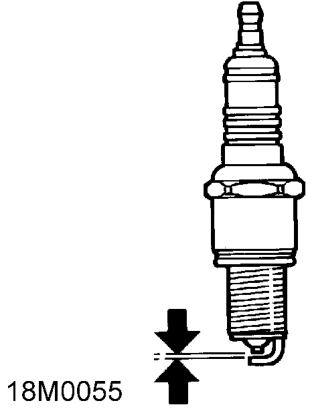

Spark plugs – Fit terminals to NEW spark plugs.
  1. Set gap of each spark plug to 0.85 mm.
  2. Fit spark plugs and tighten to 27 Nm.
  3. Connect h.t. leads to spark plugs.
  4. Locate h.t. lead securing rubbers in camshaft cover.
  5. Fit h.t. lead cover and tighten screws to 10 Nm.
