INJECTORS - SET

Service repair no - 19.60.12 Injectors - set

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner assembly. See this section.

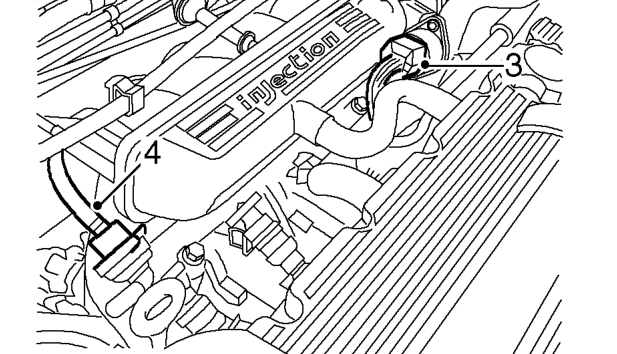

Injectors - set – Remove air cleaner assembly. See this section.
  1. Disconnect multiplug from IAC valve.
  2. Release clip and disconnect vacuum pipe from fuel pressure accumulator.

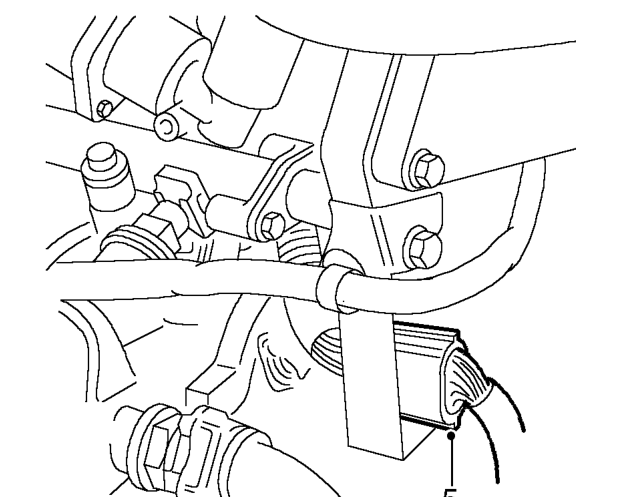

Injectors - set – Release clip and disconnect vacuum pipe from fuel pressure accumulator.
  1. Release injector harness multiplug from bracket and disconnect multiplug.

WARNING: Fuel pressure of up to 3.5 bar will be present in the system of petrol vehicles, even if the engine has not been run for some time. Always depressurise the system before disconnecting any components in the fuel feed line (between the fuel pump and the fuel rail). The spilling of fuel is unavoidable during this operation. Ensure that all necessary precautions are taken to prevent fire and explosion.

  1. Position absorbent cloth beneath fuel rail.

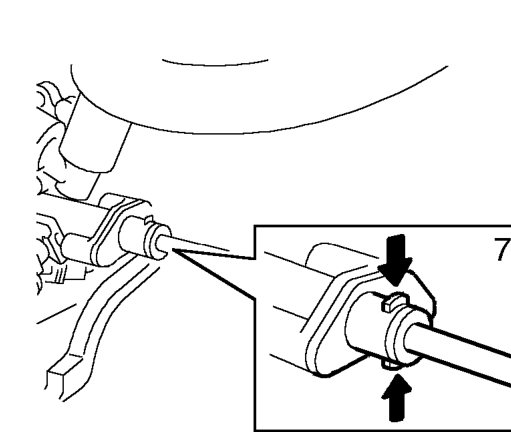

Injectors - set – Position absorbent cloth beneath fuel rail.
  1. Carefully release fuel feed hose from fuel rail.

CAUTION: Plug the connections.

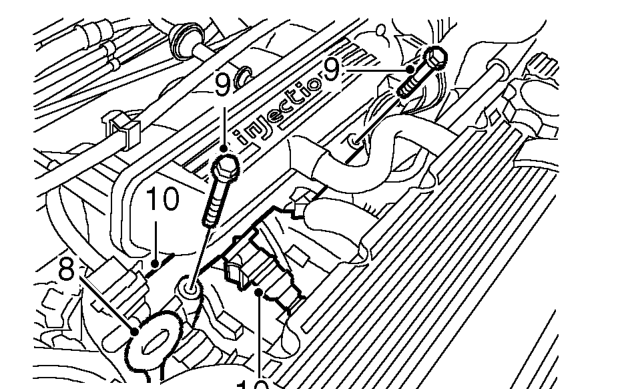

Injectors - set – Carefully release fuel feed hose from fuel rail.
  1. Remove engine oil dipstick.
  2. Remove 2 bolts securing fuel rail to inlet manifold.
  3. Release fuel rail and injectors from inlet manifold.
