Injectors - set (page 2 of 2)

11. Remove the fuel rail complete with injectors and harness.

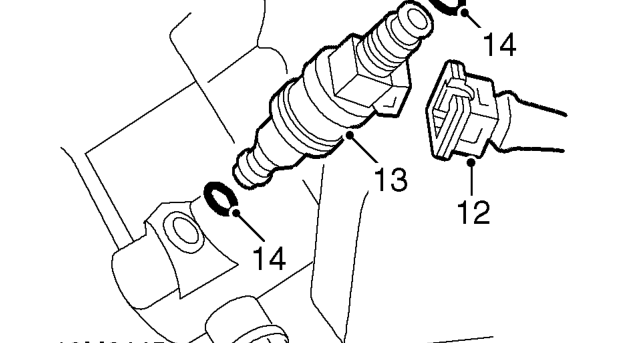

12. Disconnect multiplugs from injectors.
13. Release spring clips securing injectors to fuel rail and remove fuel injectors.
14. Remove and discard 2 ’O’ rings from each injector.
15. Fit protective caps to each end of injectors.

Refit

1. Clean injectors and recesses in fuel rail and inlet manifold.
2. Lubricate NEW ’O’ rings with silicone grease and fit to each end of injectors.
3. Fit injectors to fuel rail.
4. Secure injectors to fuel rail with spring clips and connect harness multiplugs.
5. Position fuel rail assembly and push-fit each injector into inlet manifold.
6. Fit bolts securing fuel rail to inlet manifold and tighten to 10 Nm.
7. Connect fuel feed hose to fuel rail.
8. Fit engine oil dipstick.
9. Connect injector harness multiplug to engine harness and secure to bracket.
10. Connect vacuum pipe to fuel pressure accumulator and secure with clip.
11. Connect multiplug to IAC valve.
12. Fit air cleaner assembly. See this section.
13. Connect battery earth lead.
