Sensor - intake air temperature (iat)

SENSOR - INTAKE AIR TEMPERATURE (IAT)

Service repair no - 18.30.09

Remove

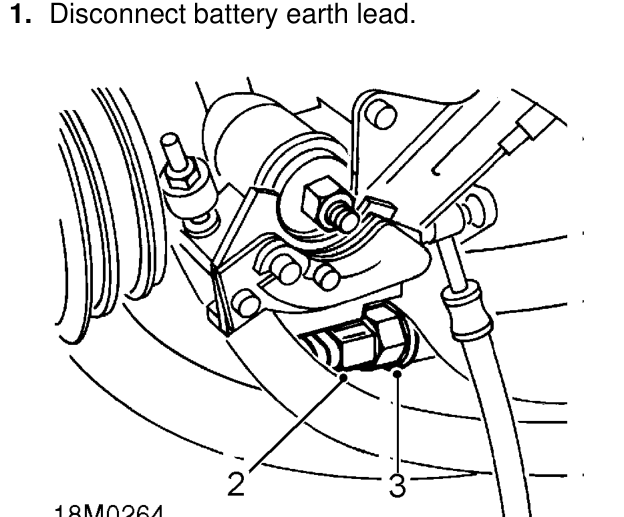

1. Disconnect battery earth lead.

2. Disconnect multiplug from IAT sensor.
3. Remove IAT sensor.

Refit

1. Clean threads of IAT sensor
2. Clean mating faces of IAT sensor and intake manifold.
3. Fit sensor to intake manifold and tighten to 7 Nm.
4. Connect multiplug to IAT sensor.
5. Connect battery earth lead.

SENSOR - THROTTLE POSITION (TP)

Service repair no - 18.30.17

Remove

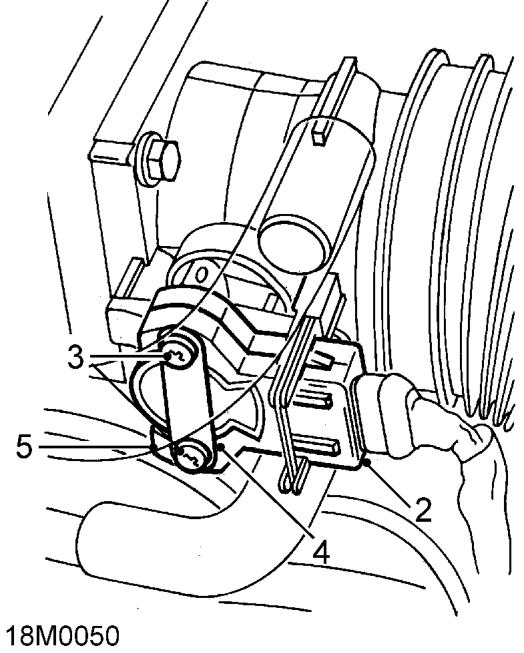

1. Disconnect battery earth lead.

2. Disconnect multiplug from TP sensor.
3. Remove and discard 2 Torx screws and wave washers securing TP sensor to inlet manifold.
4. Remove TP sensor specification plate.
5. Pull TP sensor from throttle spindle.

CAUTION: Do not twist or apply leverage to TP sensor.

Refit

1. Clean mating faces of throttle housing and TP sensor.
2. Fit TP sensor to throttle spindle. Ensure that during fitting, the machined flat on the throttle spindle is aligned with the mating portion of the TP sensor.
