Land Rover Freelander Workshop Manual (1998-2000)16 · Transfer box - IRD
16 · General

Seals - primary gear shaft (page 2 of 2)

Make
Land Rover
Model
Freelander Workshop Manual
Year
1998–2000
Section
Repairs
Transfer box - IRDSeals - primary gear shaft · page 2 of 2
Diagram

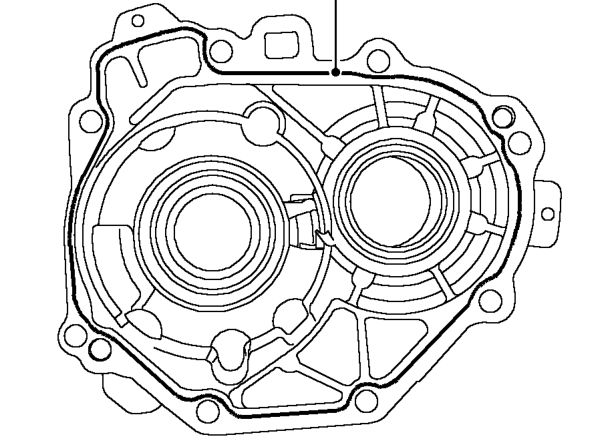

  1. Apply a bead of sealant to sealing face of end cover.
  2. Fit end cover and tighten bolts to 30 Nm.
Fit end cover and tighten bolts to 30 Nm.

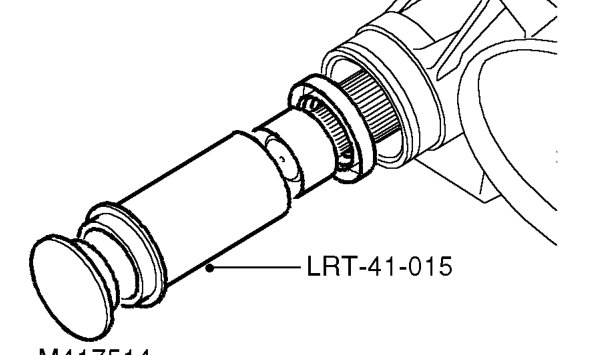

  1. Fit protector of LRT-41-015 to IRD splines.

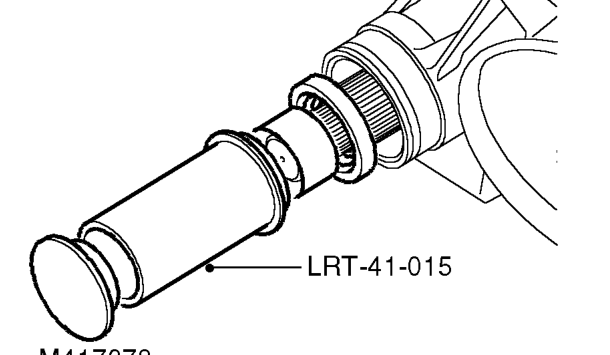

  2. Using plain end of drift LRT-41-015 fit inner seal into main case until it contacts the shoulder.
Using plain end of drift LRT-41-015 fit inner seal into main case until it contacts the sh
  1. Using flanged end of drift LRT-41-015 fit outer seal to depth dictated by tool flange.

NOTE: Use end protector of LRT-41-015 to avoid damage to the working surfaces of the tool.

NOTE: The seals are fitted with the main sealing lips facing away from each other.

  1. Remove protector.
  2. Fit IRD. See TRANSFER BOX, Repairs.
