Restraint systemsRotary coupler

Refit

NOTE: If the airbag module is to be replaced, the bar code of the new module must be recorded.

  1. Position airbag to fascia, connect multiplug and multiplug holder.
  2. Align airbag to fascia and tighten torx screws to 9 Nm.
  3. Position fascia trim and tighten screws.
  4. Connect battery leads, earth lead last.

ROTARY COUPLER

Service repair no - 76.74.20

Remove

WARNING: See GENERAL INFORMATION, SRS Precautions.

  1. Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.

CAUTION: Ensure front road wheels are in the straight ahead position.

  1. Remove steering wheel. See STEERING, Repairs.

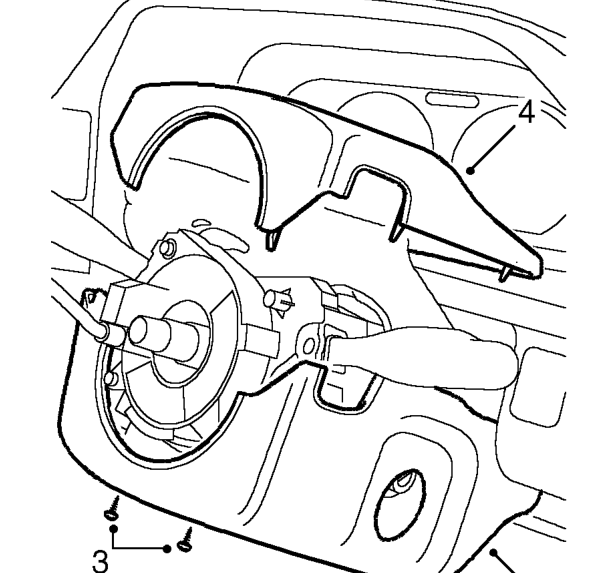

Rotary coupler – Remove steering wheel. See STEERING, Repairs.
  1. Remove 2 screws securing lower half of steering column nacelle.
  2. Remove lower and upper halves of nacelle.
