SEAT BELT - CENTRE - REAR - 5 DOOR

Service repair no - 76.73.20

Remove

  1. Remove RH rear seat. See BODY, Seats and seat belts.
Seat belt - centre - rear - 5 door – Remove RH rear seat. See BODY, Seats and seat belts.

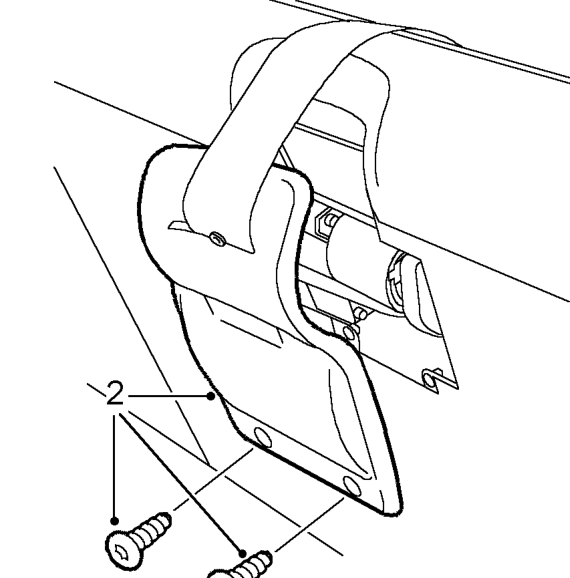

  1. Remove 2 screws and remove seat belt reel cover.
Seat belt - centre - rear - 5 door – Remove 2 screws and remove seat belt reel cover.

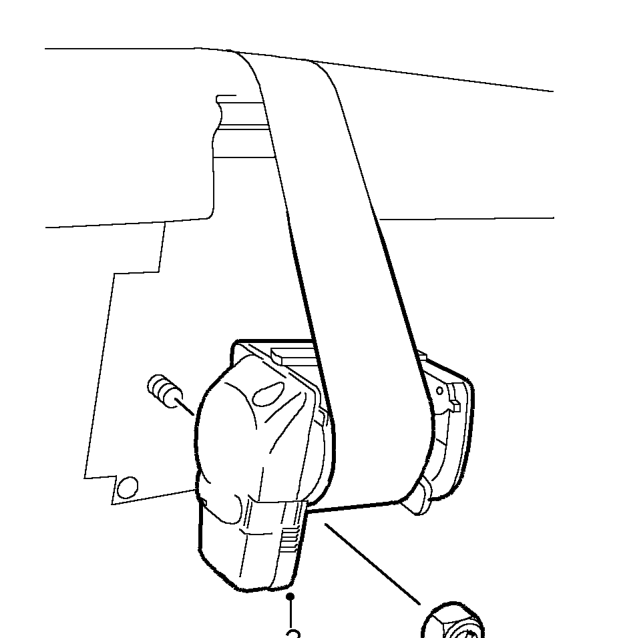

  1. Remove nut and release seat belt reel.
Seat belt - centre - rear - 5 door – Remove nut and release seat belt reel.

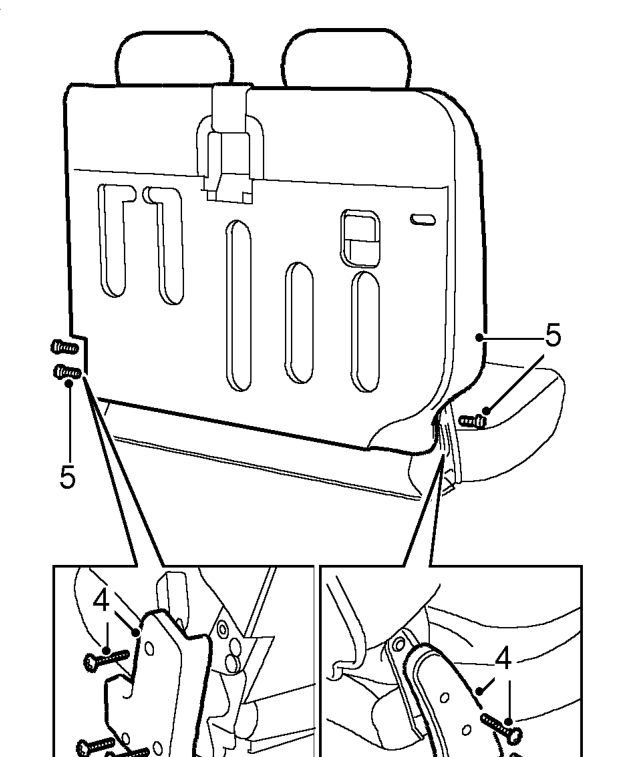

  1. Remove 5 screws and remove both end covers from seat hinges.
  2. Remove 3 Torx bolts and remove squab from cushion.
Seat belt - centre - rear - 5 door – Remove 3 Torx bolts and remove squab from cushion.

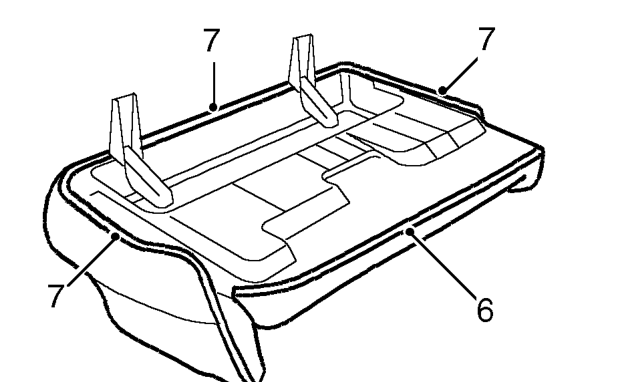

  1. Release rear of cushion cover from seat frame.
  2. Release sides and front of cushion cover from seat frame.
