Seat belt - side - rear - 5 door

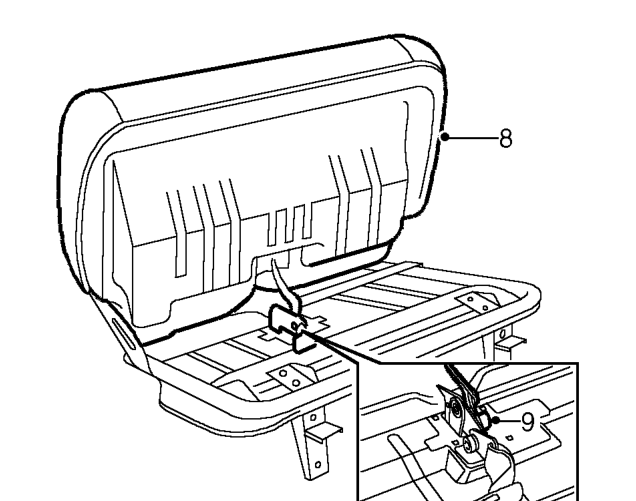

8. Release cover and pad from seat frame.
9. Remove Torx bolt from centre seat belt anchor/right seat belt buckle.
10. Remove seat belt and right seat belt buckle.

Refit

1. Position centre seat belt anchor and right seat belt buckle to seat and tighten Torx bolt to 40 Nm.
2. Fit cover and pad to seat frame.
3. Fit front and sides of cushion cover to seat frame.
4. Fit rear of cushion cover to seat frame.
5. Fit cushion to squab and tighten Torx bolts.
6. Fit end covers and tighten screws.
7. Position seat belt reel and tighten nut to 32 Nm.
8. Fit seat belt reel cover and tighten screws.
9. Fit rear seat. See BODY, Seats and seat belts.

SEAT BELT - SIDE - REAR - 5 DOOR

Service repair no - 76.73.23

Remove

1. Remove rear quarter upper trim casing. See BODY, Interior trim components.

2. Remove Torx bolt from seat belt upper mounting.

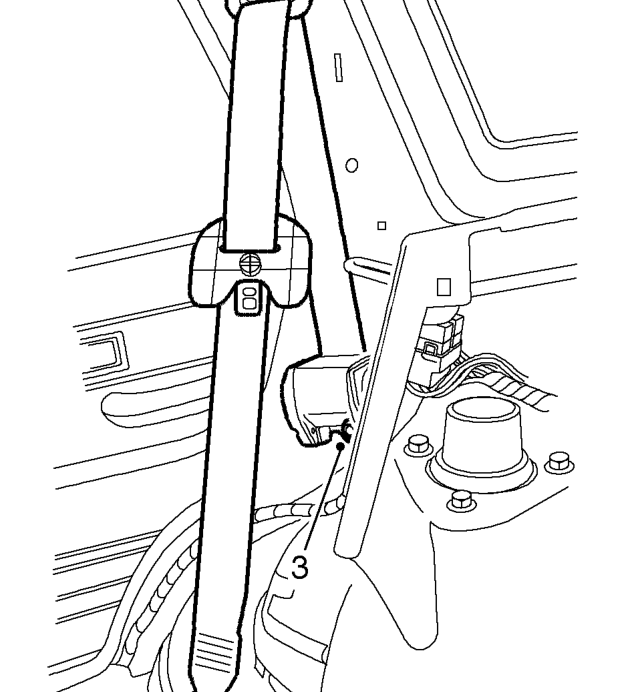

3. Remove Torx bolt from seat belt reel and remove reel.

Refit

1. Position reel and tighten Torx bolt to 50 Nm.
2. Extend belt, position top mounting and tighten Torx bolt to 32 Nm.
3. Fit rear quarter upper trim casing. See BODY, Interior trim components.
