Restraint systemsAirbag - steering wheel

Refit

  1. Position seat belt buckle and tighten Torx bolt to 40 Nm.
  2. Fit cover and pad to frame.
  3. Fit front and sides of cushion cover to frame.
  4. Fit rear of cushion cover to frame.
  5. Fit cushion to squab and tighten Torx bolts.
  6. Fit end covers and tighten screws.
  7. Position seat belt reel and tighten nut to 32 Nm.
  8. Fit seat belt reel cover and tighten screws.
  9. Fit rear seat. See BODY, Seats and seat belts.

AIRBAG - STEERING WHEEL

Service repair no - 76.74.01

Remove

WARNING: See GENERAL INFORMATION, SRS Precautions.

  1. Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.

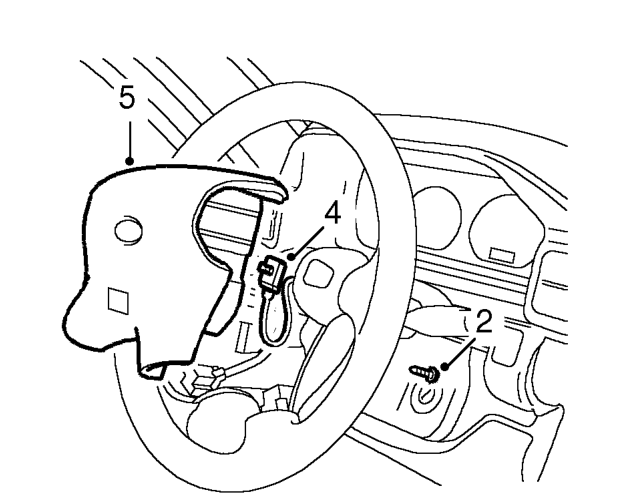

Airbag - steering wheel – Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.
  1. Remove 2 Torx bolts securing the airbag module to steering wheel.
  2. Release airbag module from steering wheel.

CAUTION: Do not allow the airbag module to hang by the harness.

  1. Disconnect harness connector from the airbag module.
  2. Remove airbag module.

WARNING: Store the airbag module in accordance with the storage procedures. See GENERAL INFORMATION, SRS Precautions.
