Restraint systemsSeat belt buckle - rear - 5 door

SEAT BELT BUCKLE - REAR - 5 DOOR

Service repair no - 76.73.32

Remove

  1. Position rear seat forward.

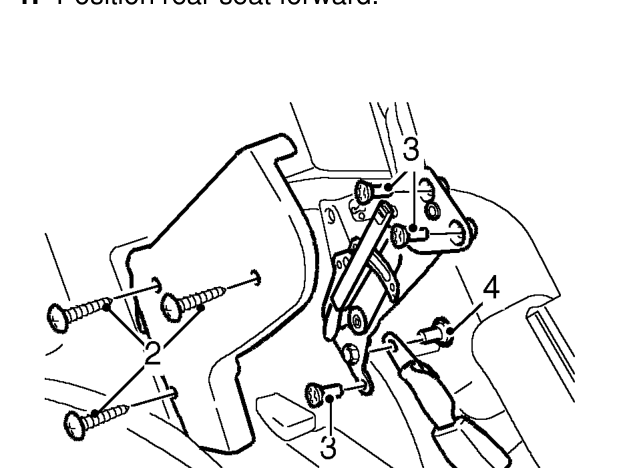

Seat belt buckle - rear - 5 door – Position rear seat forward.
  1. Remove 3 screws from end cover and remove covers from seat hinges.
  2. Remove 4 Torx bolts from seat lock down catch and remove catch assembly.
  3. Remove Torx bolt from seat belt buckle and remove buckle.

Refit

  1. Fit buckle to catch assembly and tighten Torx bolt to 40 Nm.
  2. Fit catch assembly to seat and tighten Torx bolts.
  3. Fit end cover and tighten screws.
  4. Reposition seat.

PRETENSIONER - SEAT BELT - FRONT

Service repair no - 76.73.75

Remove

WARNING: See GENERAL INFORMATION, SRS Precautions.

  1. Make the SRS system safe. See GENERAL INFORMATION, SRS Precautions.
  2. Remove rear console. See BODY, Interior trim components.
Pretensioner - seat belt - front – Remove rear console. See BODY, Interior trim components.
  1. Disconnect and secure pretensioner multiplug.
  2. Remove Torx bolt from pretensioner, release pretensioner from seat location and remove pretensioner assembly.

WARNING: Store the pretensioner in accordance with the storage procedures. See GENERAL INFORMATION, SRS Precautions.
