SEAT BELT BUCKLE - REAR - 3 DOOR

Service repair no - 76.73.32

Remove

  1. Remove rear seat. See BODY, Seats and seat belts.
Seat belt buckle - rear - 3 door – Remove rear seat. See BODY, Seats and seat belts.

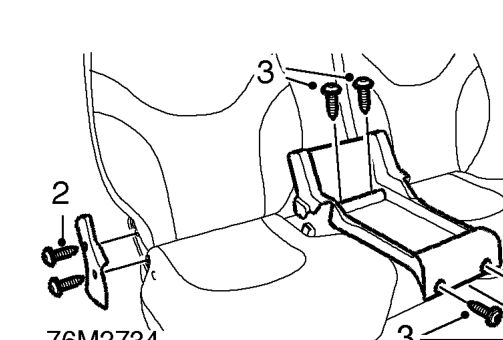

  1. Remove 2 screws from hinge cover and remove cover from seat hinge.
  2. Remove 4 screws and remove rear seat centre console.
Seat belt buckle - rear - 3 door – Remove 4 screws and remove rear seat centre console.

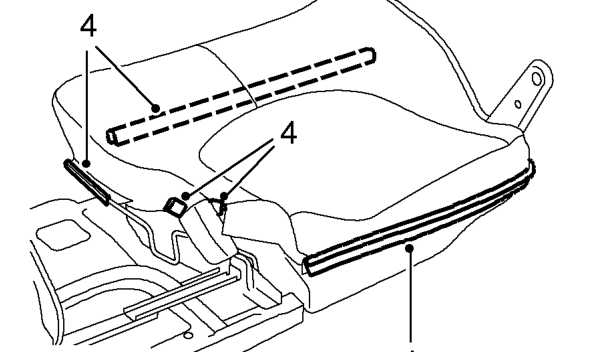

  1. Release rear seat cushion cover retainers and position cushion aside.
Seat belt buckle - rear - 3 door – Release rear seat cushion cover retainers and position cushion aside.

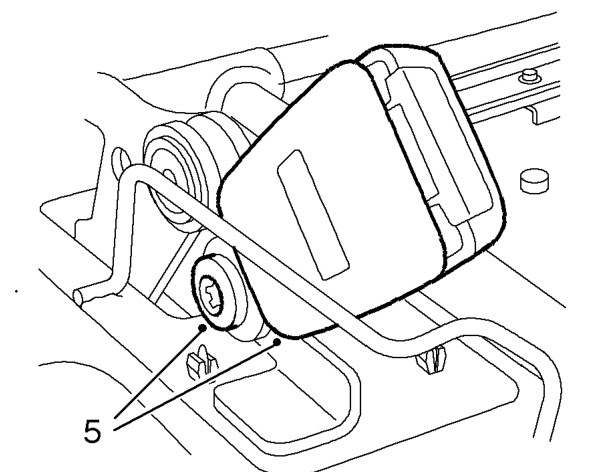

  1. Remove Torx bolt and remove seat belt buckle.

Refit

  1. Fit buckle to seat frame and tighten Torx bolt to 40 Nm.
  2. Position seat cushion and secure cover retainers.
  3. Fit centre console and tighten screws.
  4. Fit hinge cover and tighten screws.
  5. Fit rear seat. See BODY, Seats and seat belts.
