Seat belt buckle - centre - rear - 5 door (page 2 of 2)

Make
Land Rover
Model
Freelander Body Repair Manual
Year
1998 on
Section
Repairs
Restraint systemsSeat belt buckle - centre - rear - 5 door · page 2 of 2
Diagram

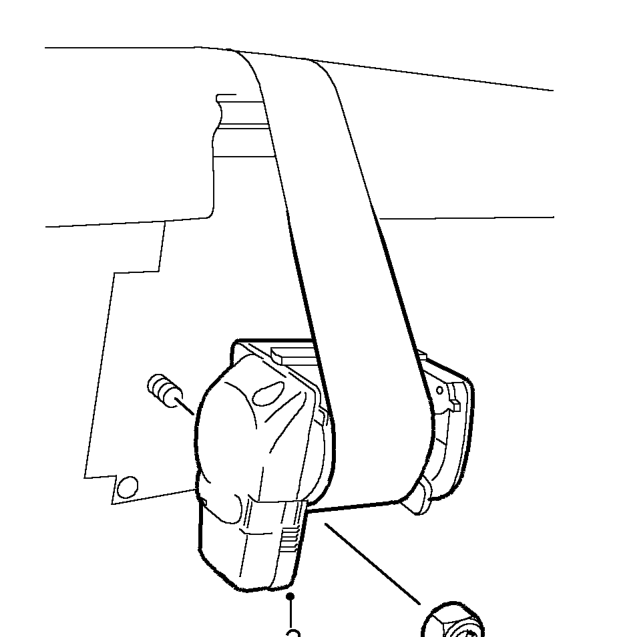

  1. Remove nut and release seat belt reel.
Remove nut and release seat belt reel.

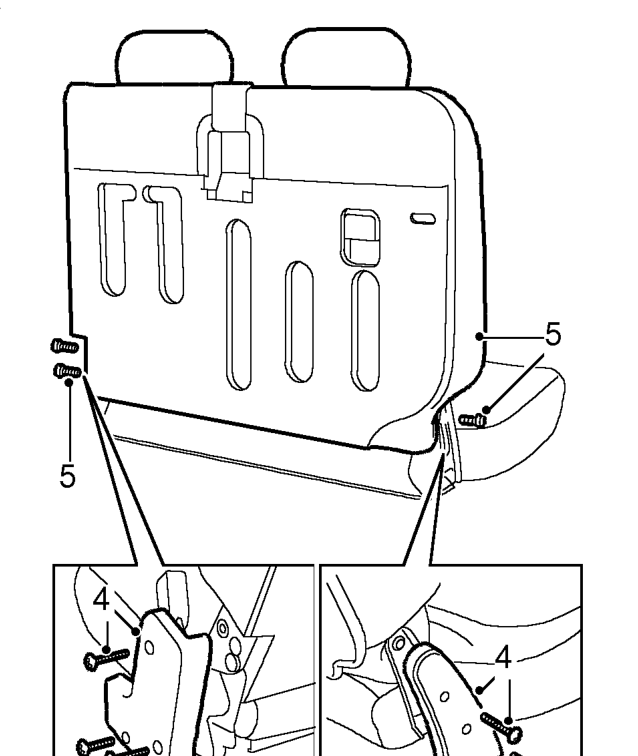

  1. Remove 5 screws and remove both end covers from seat hinges.
  2. Remove 3 Torx bolts and remove squab from cushion.
Remove 3 Torx bolts and remove squab from cushion.

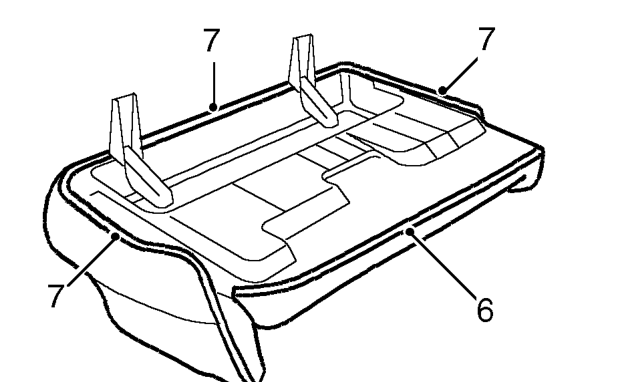

  1. Release rear of cushion cover from frame.
  2. Release sides and front of cushion cover from frame.
Release sides and front of cushion cover from frame.

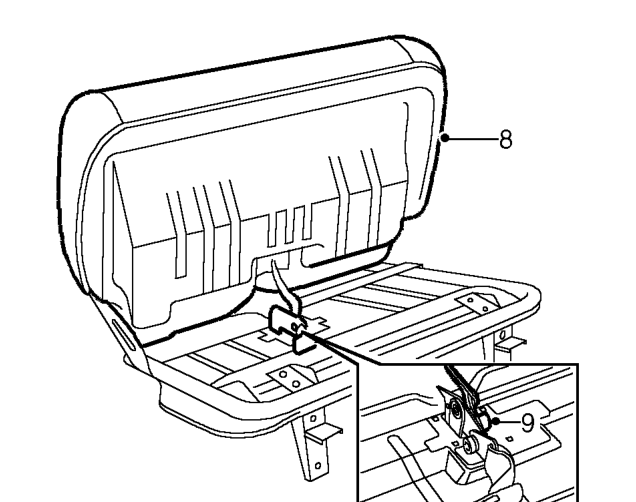

  1. Release cover and pad from frame.
  2. Remove Torx bolt from seat belt buckle and remove buckle.
