L322 Range Rover Service Procedures
FUEL DELIVERY SYSTEM - V8
19-2-14 REPAIRS

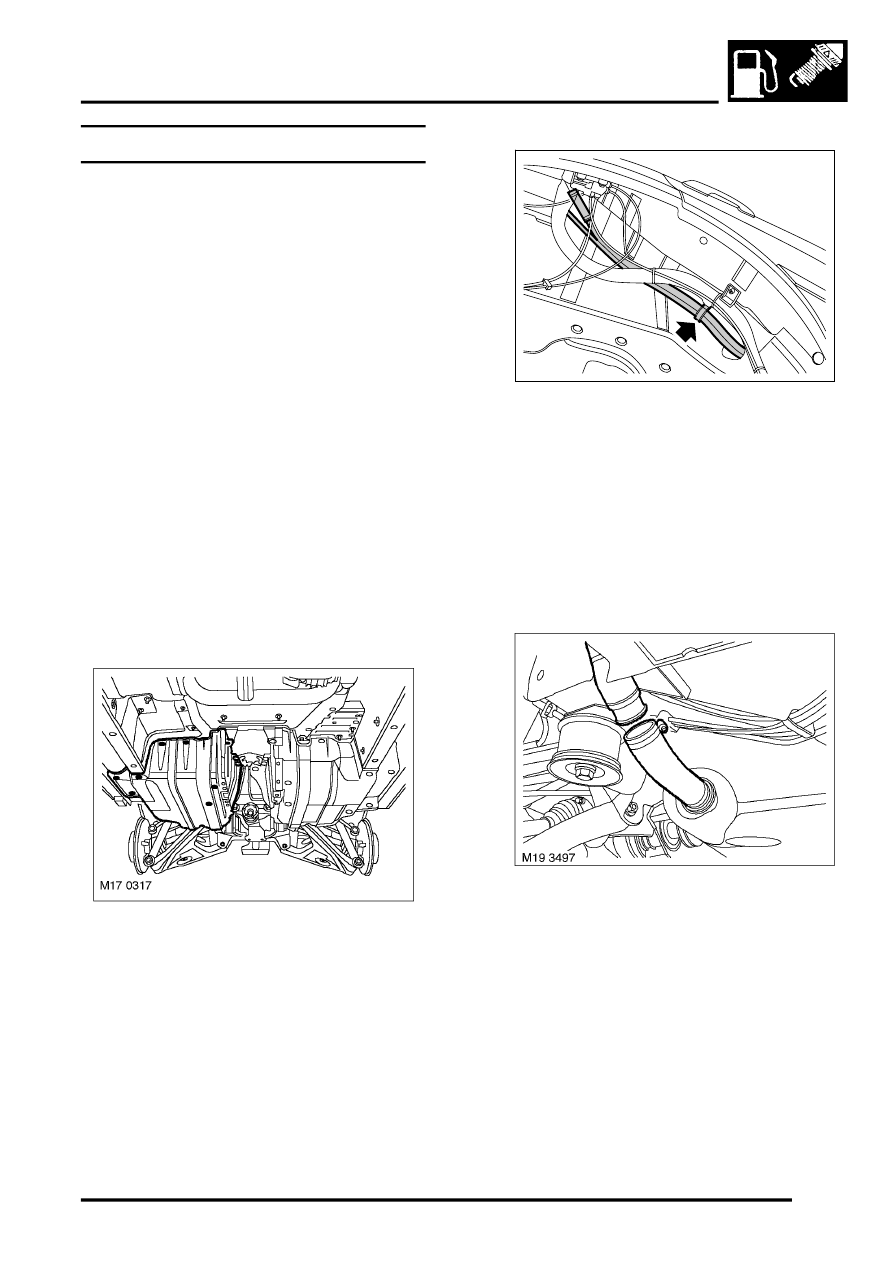

13. Cut 3 cable ties securing air suspension pipes
to fuel tank filler neck.

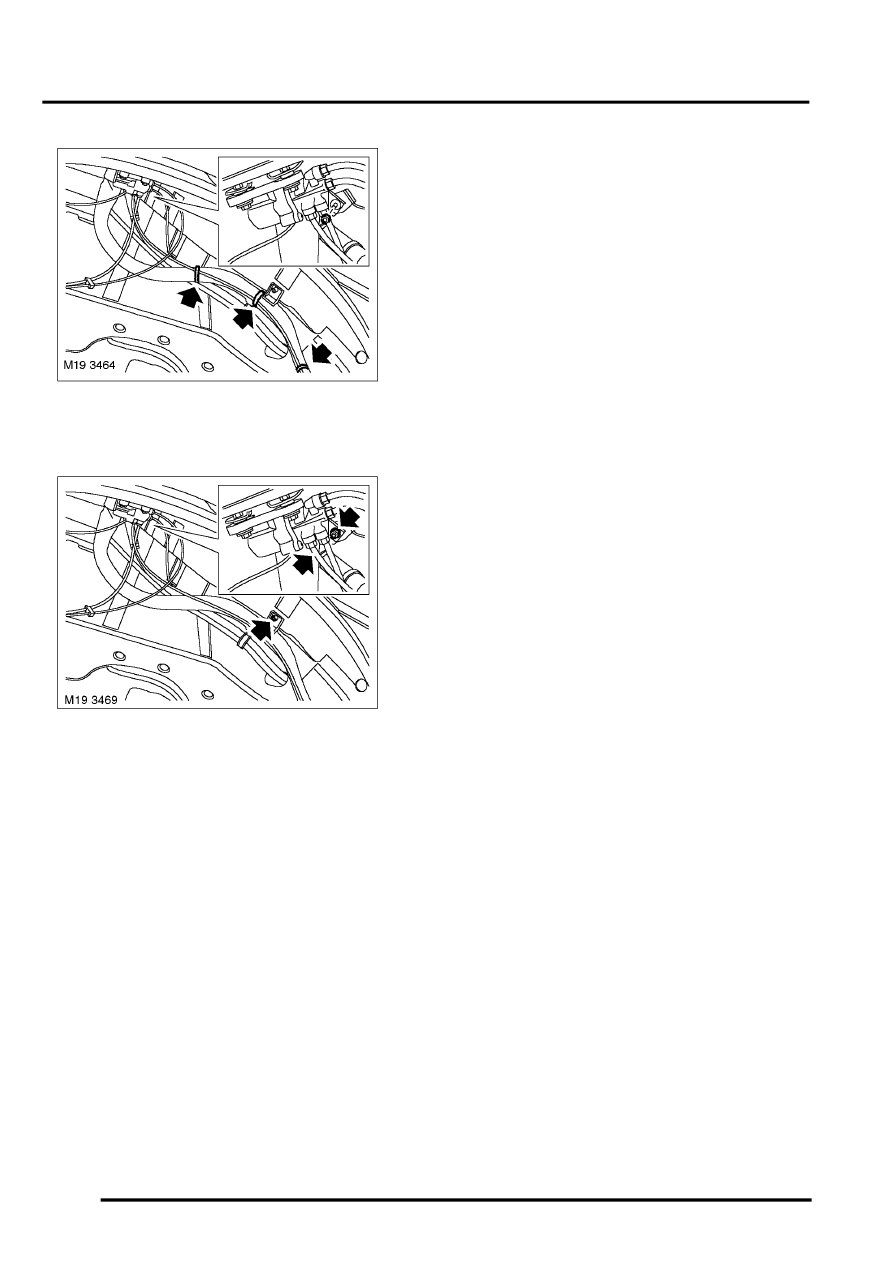

14. Remove 2 nuts securing fuel tank filler neck to
body, disconnect breather hose and remove
fuel tank filler neck.
Refit
1. Fit 2 nuts securing fuel tank filler neck to body,
connect breather hose to fuel tank filler neck
and secure with clip.
2. Fit 3 cable ties securing air suspension pipes to
fuel tank filler neck.
3. Connect fuel tank filler hose to fuel tank filler
neck.
4. Fit securing clip to fuel tank breather hose and
charcoal canister vent pipe.
5. Fit fuel tank breather pipes and charcoal
canister vent pipes to clip on fuel tank filler
neck.
6. Fit bolts and nuts securing RH fuel tank shield
and tighten to 25 Nm (18 lbf.ft).
7. Fit RH rear wheel arch liner.
Liner - rear wheel arch - single.
8. Fit propeller shaft.
DRIVESHAFTS, REPAIRS, Propeller
9. Refill fuel tank with extracted fuel.
10. Connect battery earth lead.
