L322 Range Rover Service Procedures
LIFTING AND TOWING
08-2
Reverse procedure when removing vehicle from
stands.
Raising the rear of the vehicle
Select 'P' on automatic gearbox selector and chock
front wheels.
WARNING: Always chock the front wheels when
jacking the rear of the vehicle.

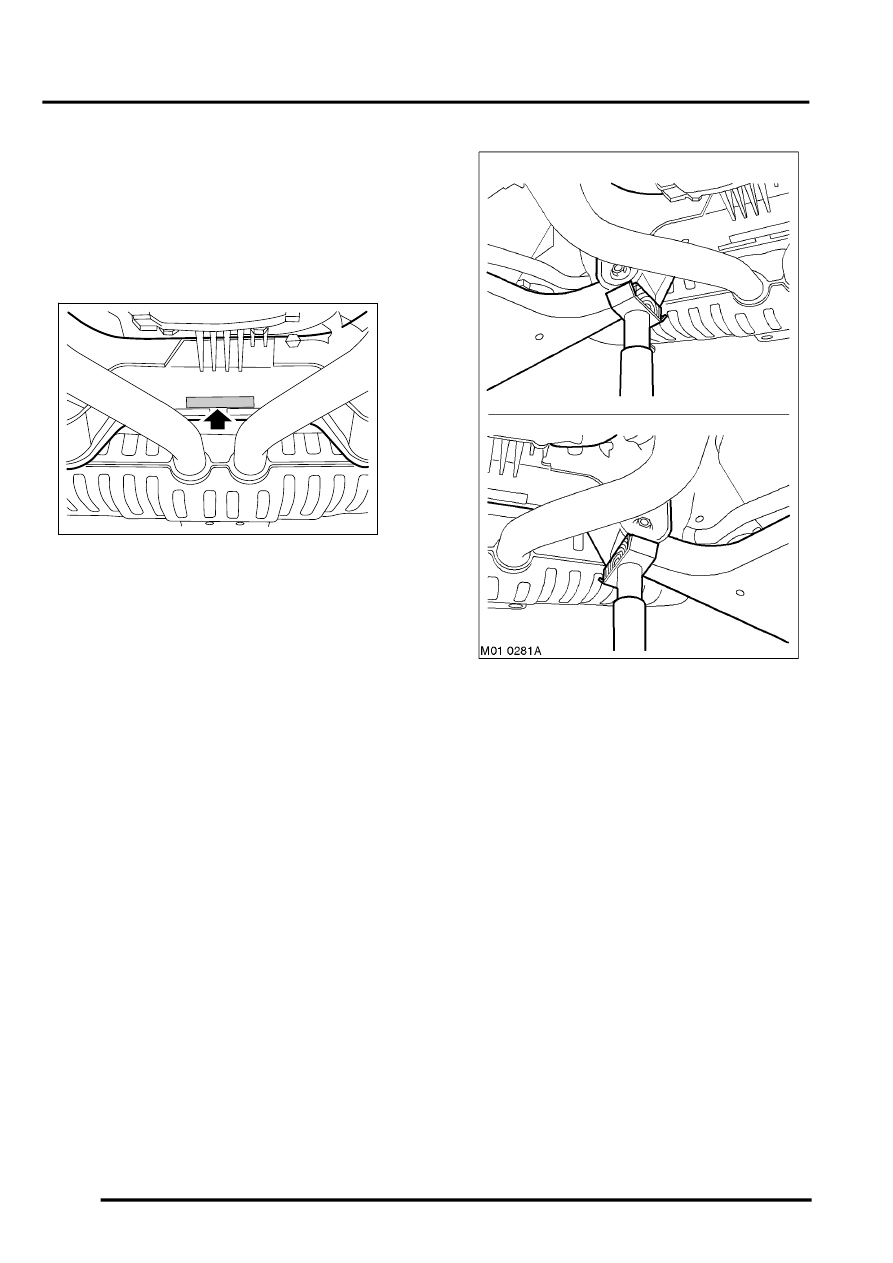

Position cup of hydraulic arm under the centre of the
rear sub-frame, rear cross member, as shown in
illustration above. The vehicle may also be lifted
using the centre of the tow bar, if fitted.
Axle stand positions - rear
Raise rear of vehicle to enable axle stands to be
positioned under the rear sub-frame. Alternatively,
the axle stands may be positioned under, either, the
recommended customer jacking points or the front
mounting points of the rear sub-frame.
CAUTION: Place a piece of hardwood or a rubber
block between each axle stand and the jacking
point to avoid damaging the body / component.
CAUTION: If any damage occurs to the washers
on the front mounting points of the rear sub-
frame, then the washers must be replaced.
Carefully lower jack until vehicle sits securely on axle
stands.
WARNING: Always support the vehicle on axle
stands when using a jack.
Before commencing work on underside of vehicle re-
check security of vehicle on stands.
Reverse procedure when removing vehicle from
stands.
M01 0283
