L322 Range Rover Service Procedures
PANEL REPAIRS
REPLACEMENT PANELS
-5

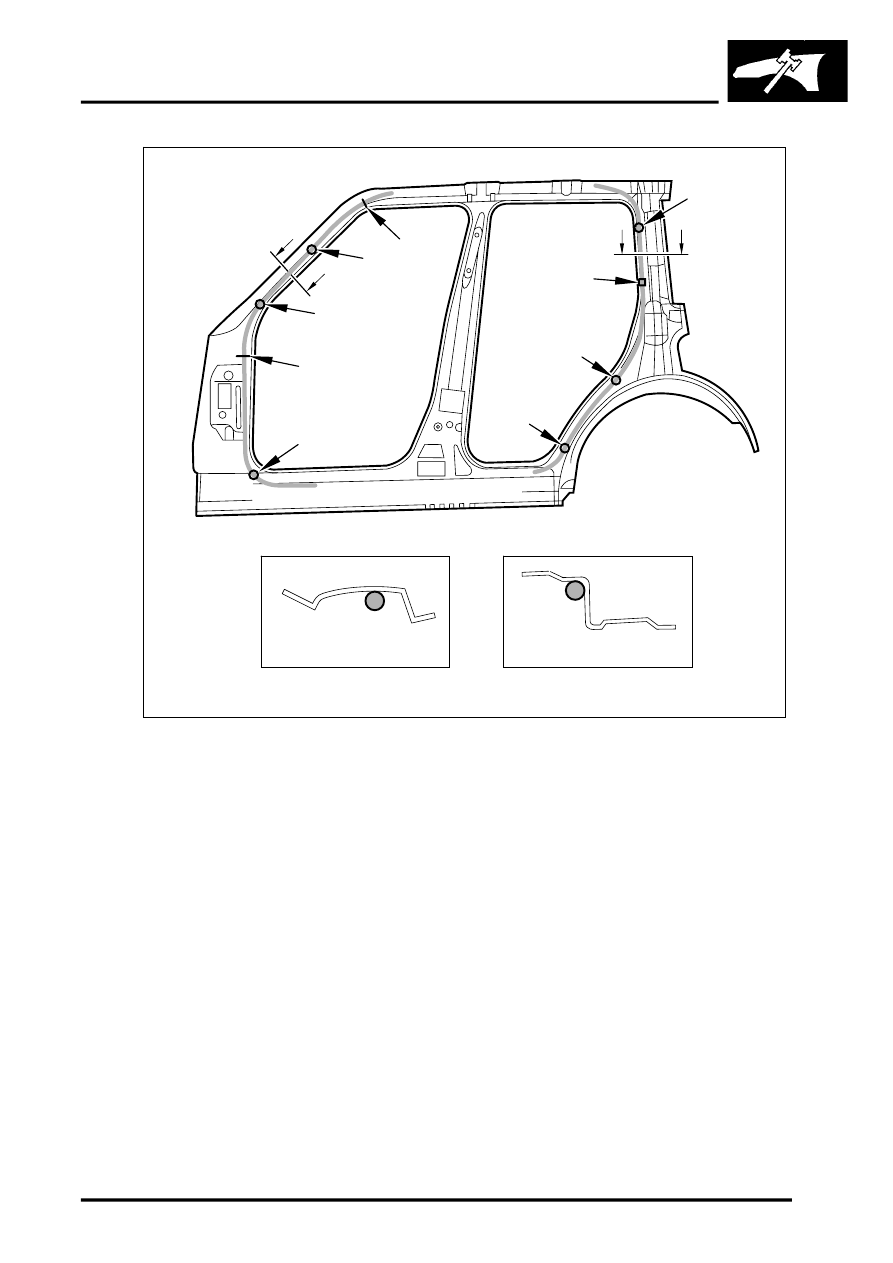

Sunroof drain tubes
Section A-A and B-B show the approximate position of each drain tube in the body side closing panel. The letters A,
B and C highlight the position, and type of clips used, to hold the drain tubes in place.
l
A = Metal clip, welded to the panel
l
B = Plastic clip
l
C = Expanding foam block, clipped to the panel
M77 2181A
Section A - A
Section B - B
B
B
A
A
A
A
B
B
B
B
B
C
B
