REPAIR
FLUID COOLER - PETROL
Service repair no - 37.12.52
Remove
1. Disconnect battery negative lead.
2. Remove engine oil cooler.
See ENGINE,
Repair.
3. Remove 4 trim studs securing air deflectors.
Remove deflectors.
4. Position container to collect fluid spillage.
5. Unscrew fluid pipe union nuts. Collect ’O’ rings
and discard.
6. Plug pipes and connections.

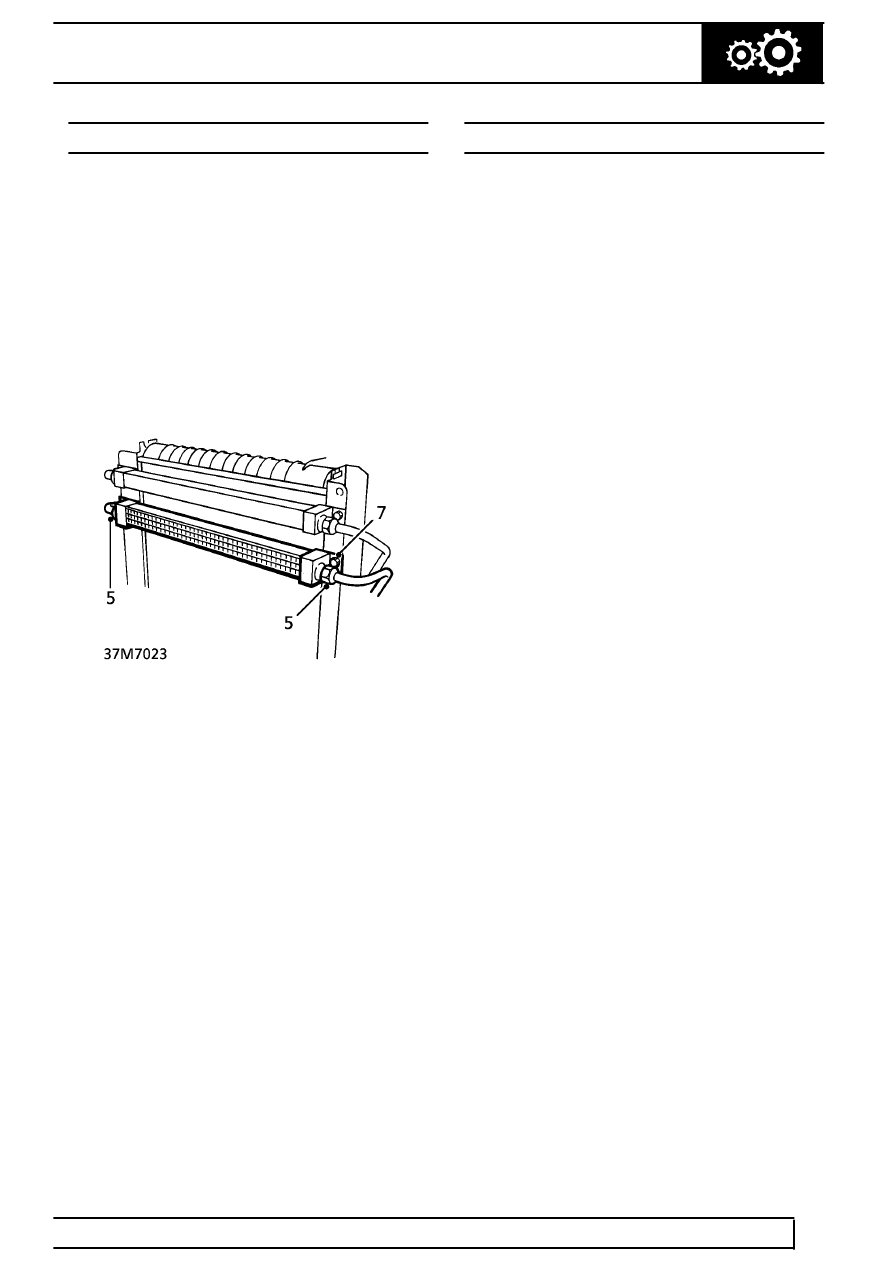

7. Remove 4 bolts securing cooler to radiator
bracket.
8. Remove cooler.
Refit
9. Fit cooler.
10. Fit and tighten 4 bolts securing cooler to
mounting bracket.
11. Remove plugs from cooler and pipes.
12. Ensure pipe unions are clean.
13. Lubricate new ’O’ rings seals with clean fluid. Fit
seals to pipes.
14. Connect pipes to cooler. Tighten to
30 Nm (22
lbf.ft)
15. Remove container.
16. Fit air deflectors and secure with studs.
17. Fit engine oil cooler.
See ENGINE, Repair.
18. Reconnect battery negative lead.
19. Top up gearbox fluid.
See SECTION 10,
Maintenance.
FLUID COOLER - DIESEL
Service repair no - 37.12.52
Remove
1. Remove radiator.
See COOLING SYSTEM,
Repair.
Refit
2. Reverse removal procedure.
