Range Rover P38
51
REAR AXLE AND FINAL DRIVE
NEW RANGE ROVER
2
REPAIR
From 97MY:

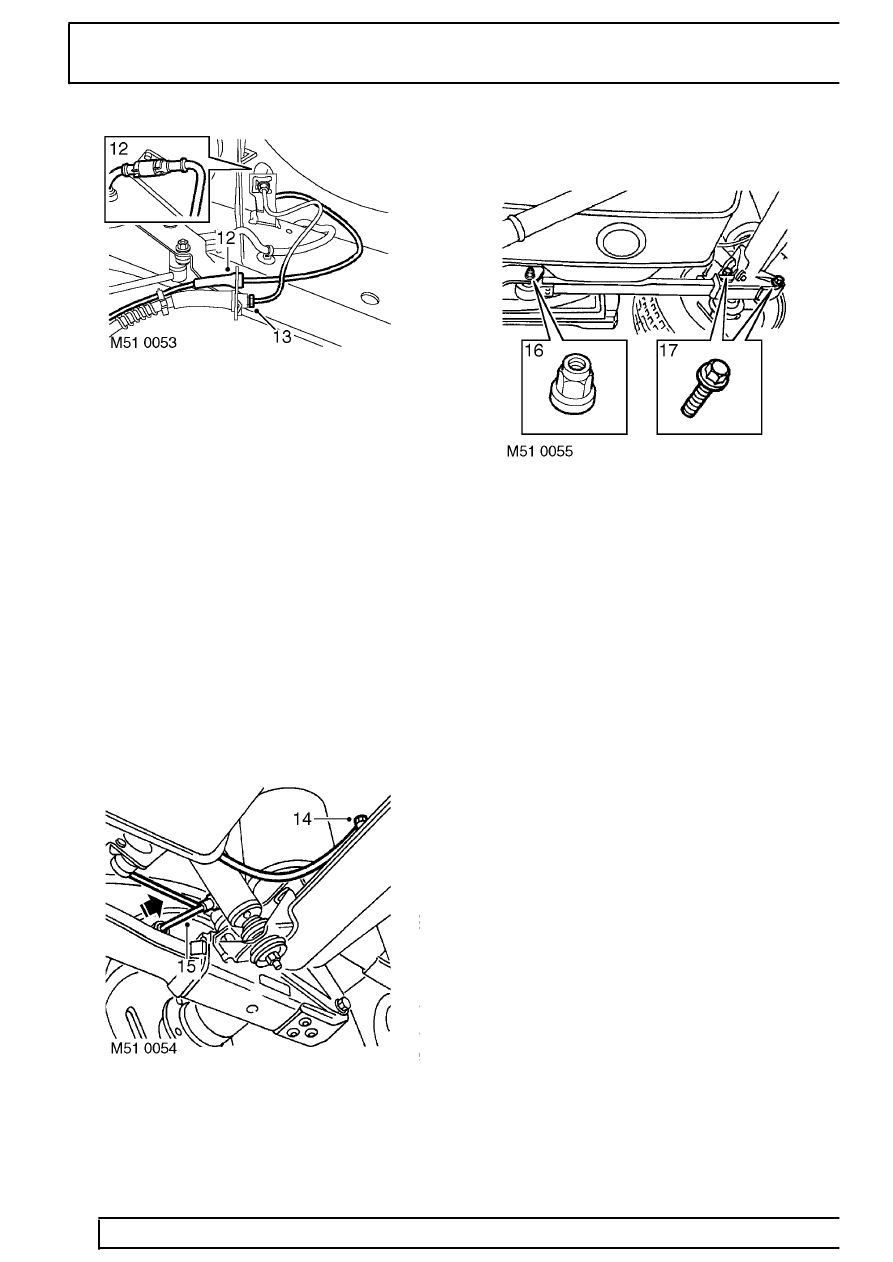

12. At LH and RH ends of axle, release ABS sensor
multiplug from chassis rail upper bracket.
Disconnect multiplug and release ABS sensor
lead from chassis rail lower bracket.
13. At LH and RH ends of axle, disconnect brake
pipe from brake hose at chassis rail lower
bracket. Remove clip and release brake hose
from chassis rail lower bracket. Plug open
connections.
All models:
14. Remove banjo bolt and strap securing breather
hose to axle. Plug hose and connection.
15. Release height sensors from trailing arms.
16. Slacken 2 nuts and bolts securing trailing arms
to chassis.
17. Remove 4 nuts and bolts securing trailing arms
to axle.
18. With assistance lower axle. Release suspension
units.
19. Remove axle from vehicle.
