Range Rover P38
FRONT AXLE AND FINAL DRIVE
3
REPAIR
5. Remove bolt securing Panhard rod to axle.
Release panhard rod. Tie aside.
6. Remove anti roll bar.
See FRONT
SUSPENSION, Repair.
7. Remove 2 nuts securing track rod ball joints to
steering knuckles. Release taper joints. Remove
track rod.
8. Mark differential and propeller shaft flanges to
aid reassembly.

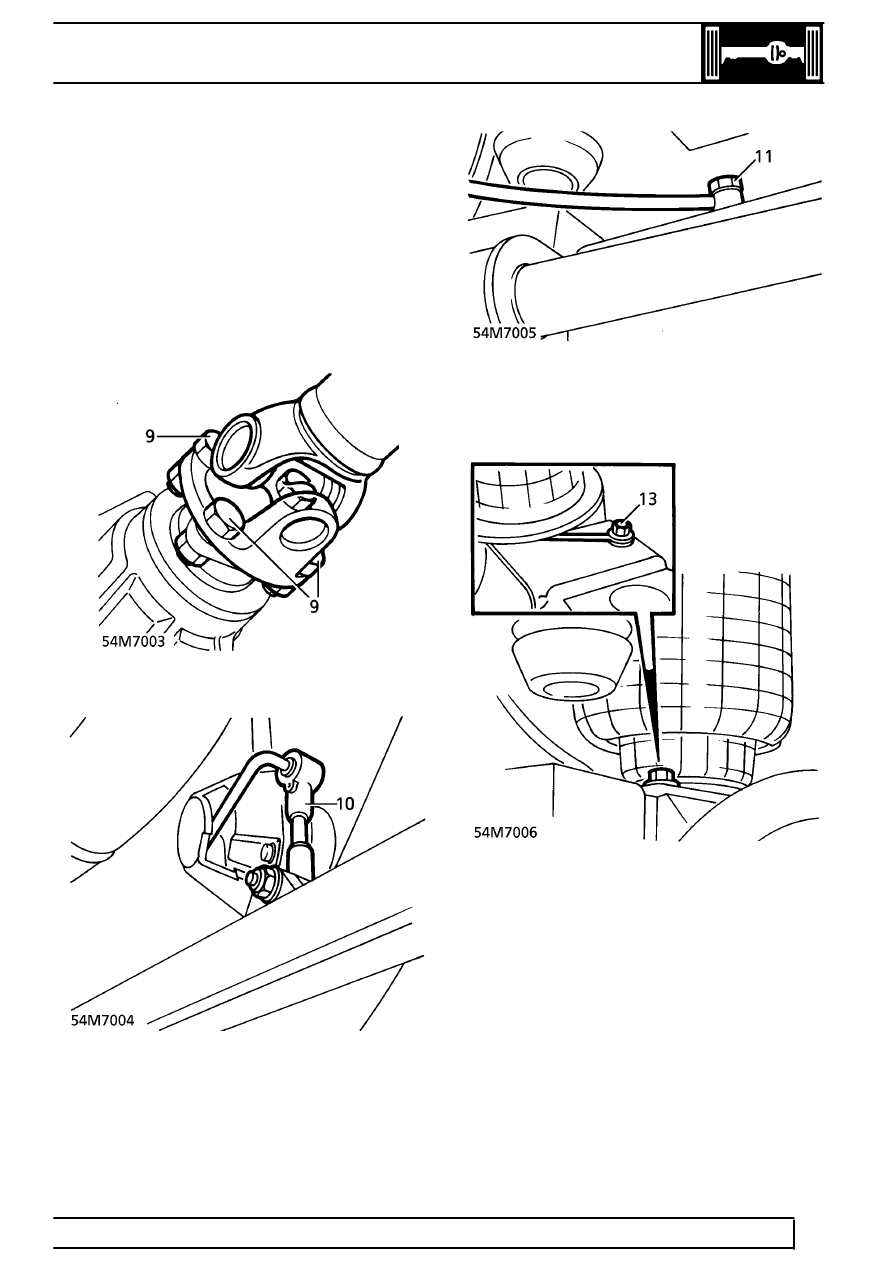

9. Remove 4 nuts and bolts securing propeller
shaft to differential; discard nuts. Release shaft
and tie aside.
10. Release height sensors from radius arms.
11. Remove banjo bolt securing breather hose to
axle case. Collect sealing washers. Plug hose
and connection.
12. Support front axle.
13. Remove bolts securing air spring retaining pins.
Remove pins.
14. Release air springs from axle.
15. Remove 2 nuts securing shock absorbers to
axle. Release shock absorbers. Collect
mounting rubbers.
