Backlight (page 2 of 2)
- Make
- MG
- Model
- MGF Body Repair Manual
- Year
- 1995–2000
- Section
- Hood
BodyBacklight · page 2 of 2

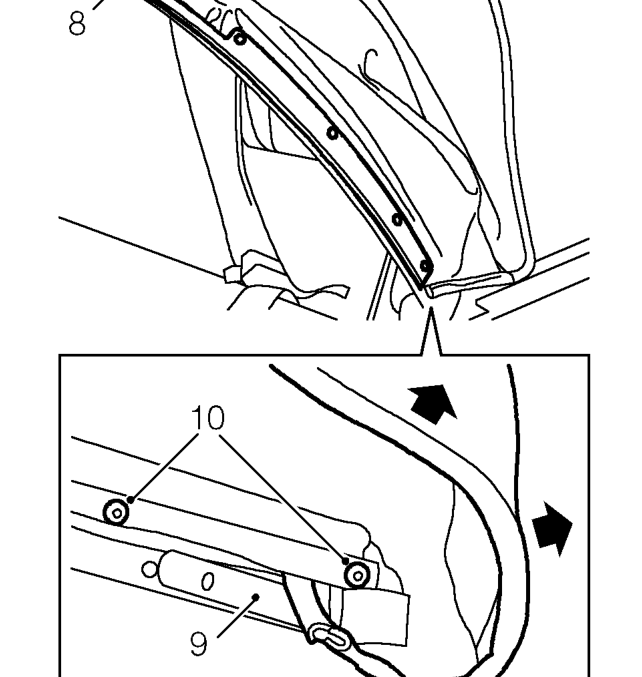

- Remove 2 rivets securing ends of hood rear quarter retaining strips.
- Carefully bend back ends of strips to reveal rivets.

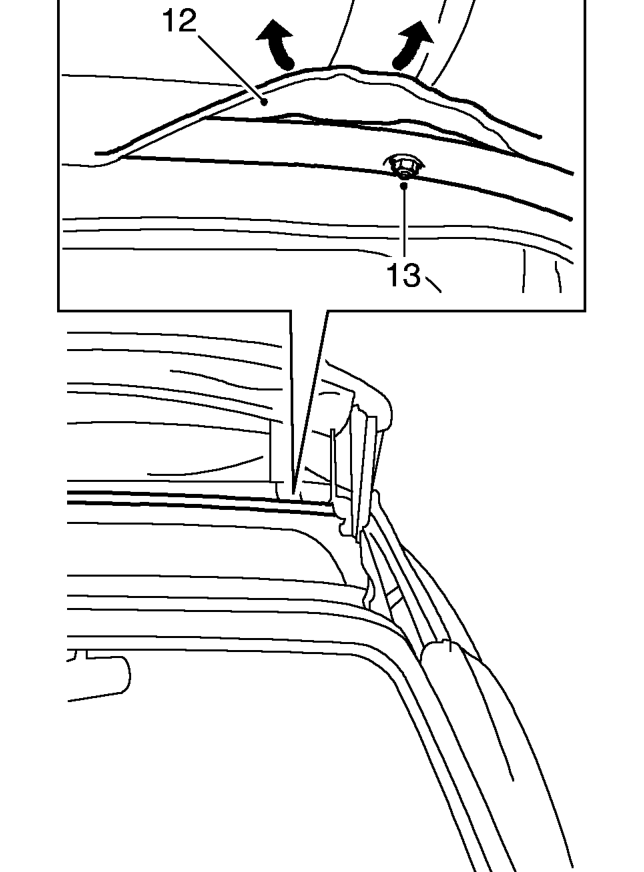

- Drill out 13 pop rivets securing backlight retaining strip.
- Collect retaining strip and remove backlight.
- Release felt covering from 3rd hood bow.
- Remove 7 nuts securing outer cover clamp rail.
- Partially lower hood frame.
- Release clamp rail studs from hood frame.
- Lay protective sheet over backlight, luggage compartment lid and seats.
- Release foam from ends of zip retainer to reveal pop rivets.
- With assistance to hold outer cover aside, drill out 9 pop rivets securing zip retainer to hood frame.
- Remove backlight zip.
