MG MGF Body Repair Manual (1995-2000)06 · Body
06 · Body & interior

Hood outer cover (page 3 of 5)

Make
MG
Model
MGF Body Repair Manual
Year
1995–2000
Section
Hood
BodyHood outer cover · page 3 of 5
Diagram

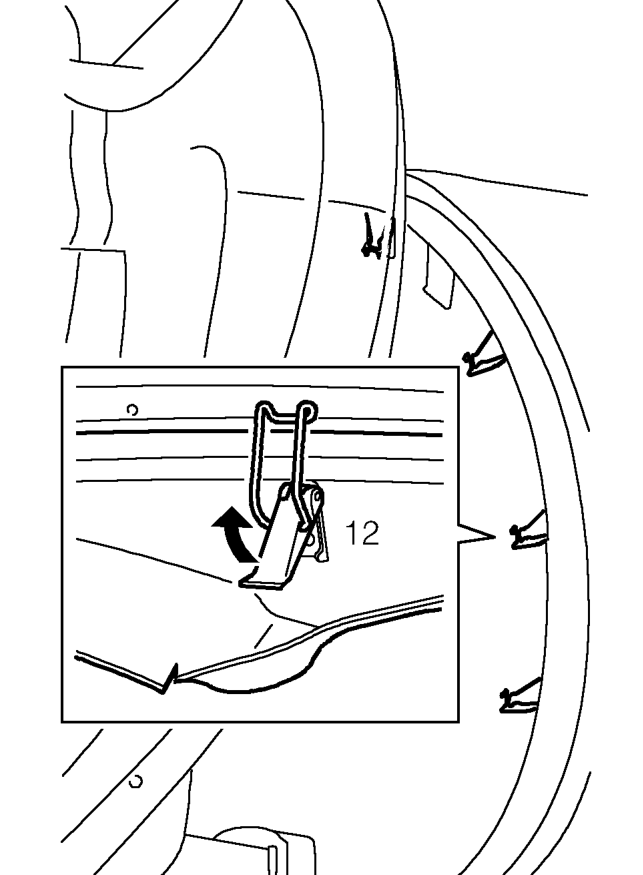

  1. Release rear edge of hoodwell carpet and release 5 clips.
  2. Fold rear of hood, up to release from body.
Fold rear of hood, up to release from body.

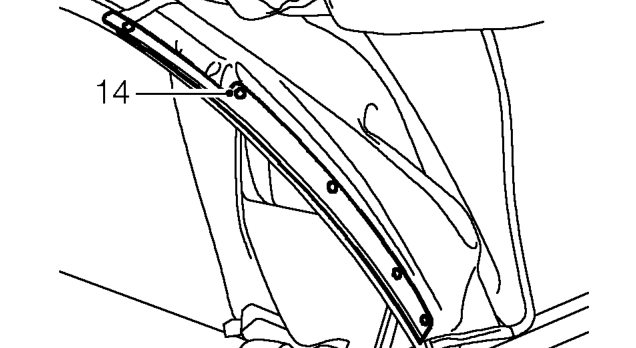

  1. Drill out 5 pop rivets securing each retaining strip and collect retaining strips.
  2. Drill out any rivet heads still captive in hood frame.
Drill out any rivet heads still captive in hood frame.

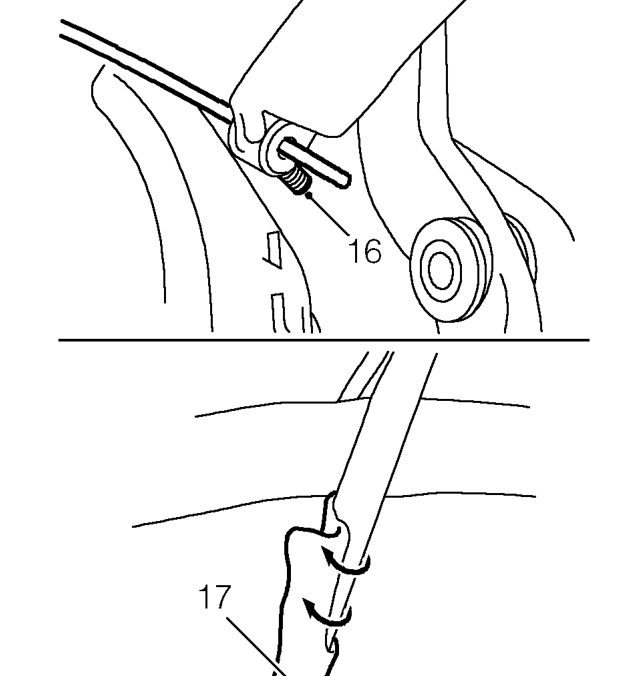

  1. Loosen cable locking screws and release cables from outer cover.

NOTE: Leave cables attached at header rail.

  1. Release outer cover flaps from adhesive on 1st and 2nd hood bows.
