Diagonal dimensions
- Make
- MG
- Model
- MGF Body Repair Manual
- Year
- 1995–2000
- Section
- Body dimensions › Diagonal dimensions
InformationDiagonal dimensions

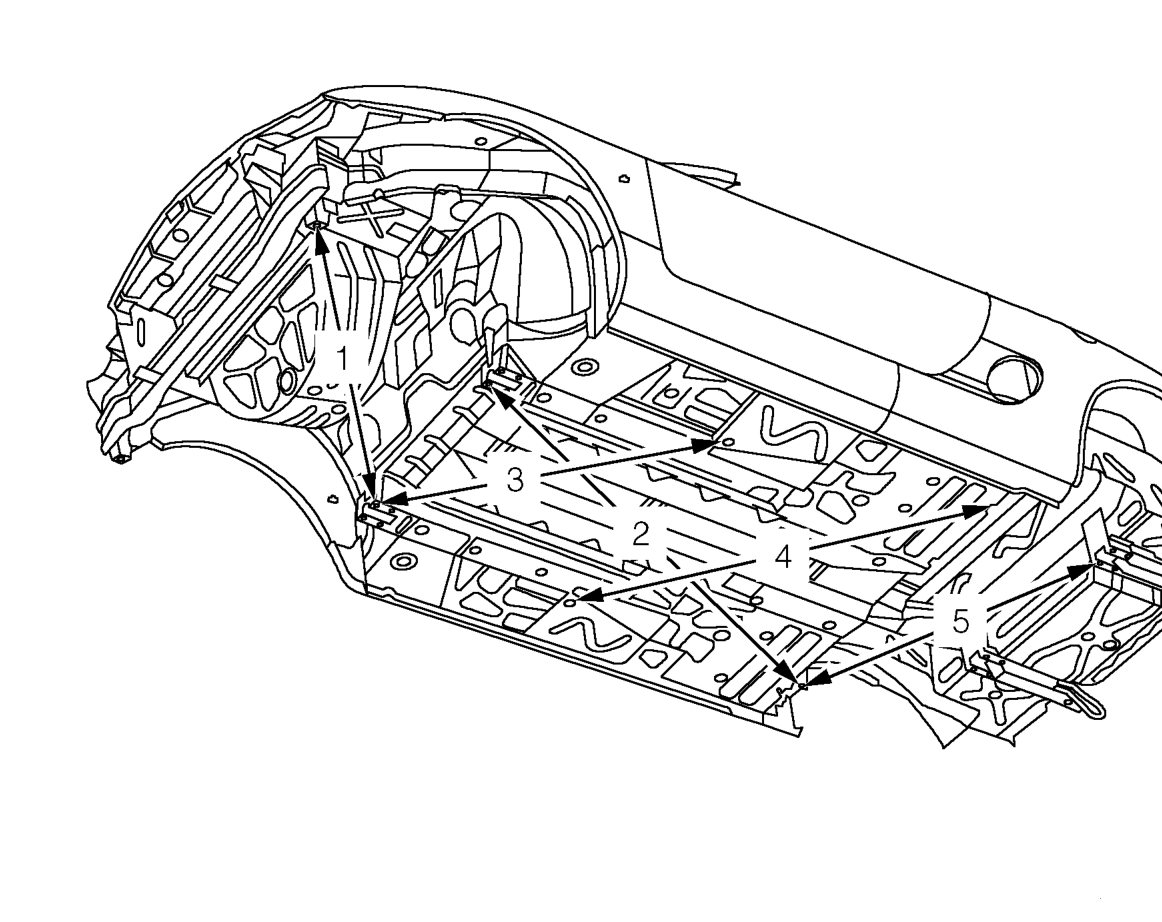

DIAGONAL DIMENSIONS
| Location | Dimension | Reference |
|---|---|---|
| Front subframe forward inner mounting hole to opposite side subframe rear mounting inner hole Front subframe inner mounting hole to opposite side rear subframe centre mounting hole Main floor lower reinforcement plunge hole to opposite side front subframe rear mounting inner hole Main floor lower reinforcement plunge hole to opposite side rear subframe forward mount centre hole Rear subframe forward mount centre hole to opposite side rear inner mounting hole | 1041mm 1906.2mm 1040mm 1372.5mm 1086.4mm | 1 2 3 4 5 |
All dimensions taken at centre line of set screw, set screw hole or jig hole. Diagonal dimensions are taken in the horizontal plane.
