InformationTransverse Dimensions - continued

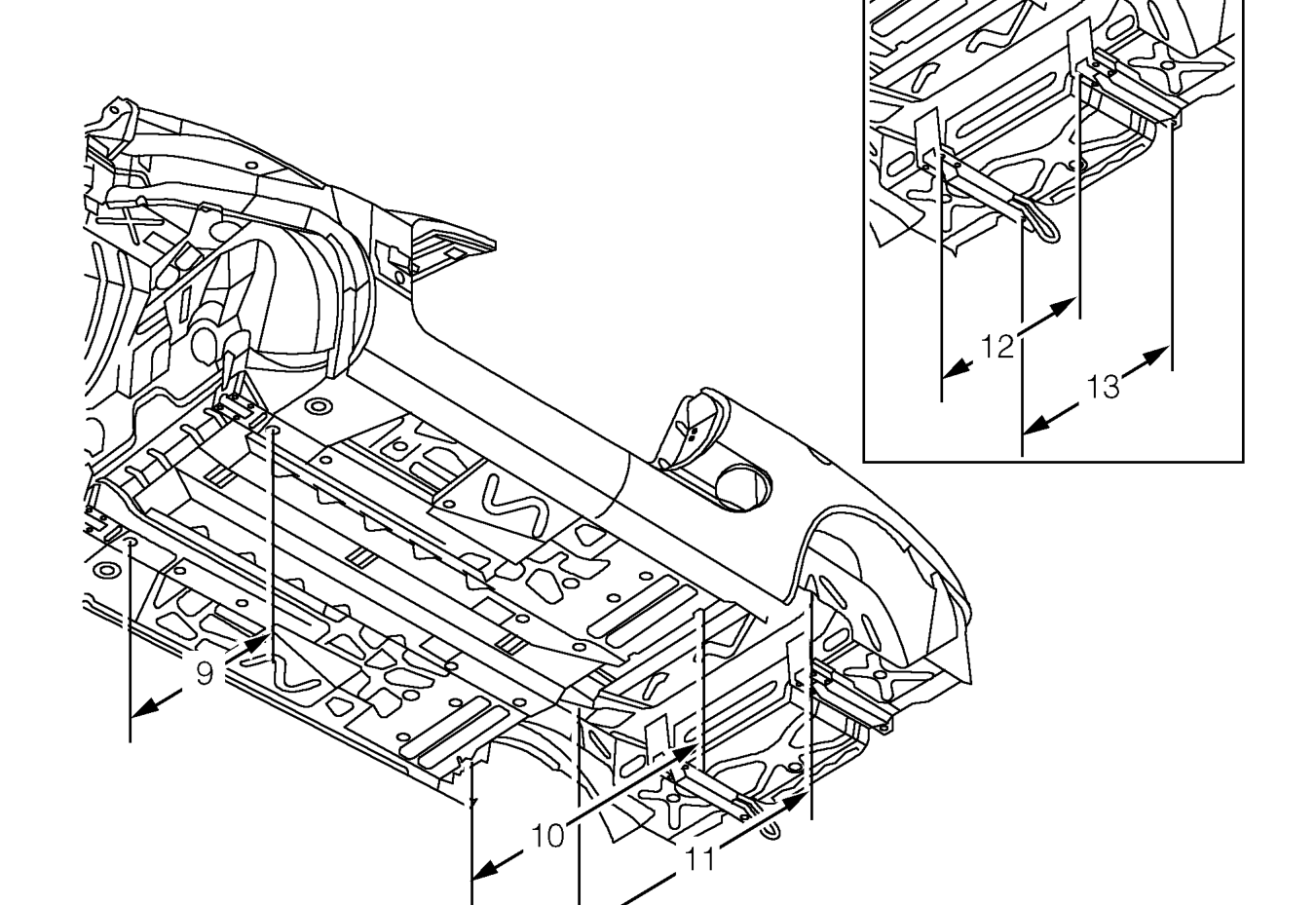

Transverse Dimensions - continued
| Location | Dimension | Reference |
|---|---|---|
| Floor longitudinal jig hole right hand to left hand Rear subframe front mounting centre hole right hand to left hand Rear suspension damper mount right hand to left hand Rear subframe rear mounting inner hole right hand to left hand Luggage floor longitudinal jig hole right hand to left hand | 660mm 1190mm 1002mm 570mm 644mm | 9 10 11 12 13 |
All dimensions taken at centre line of set screw, set screw hole or jig hole.
