InformationTransverse Dimensions - continued

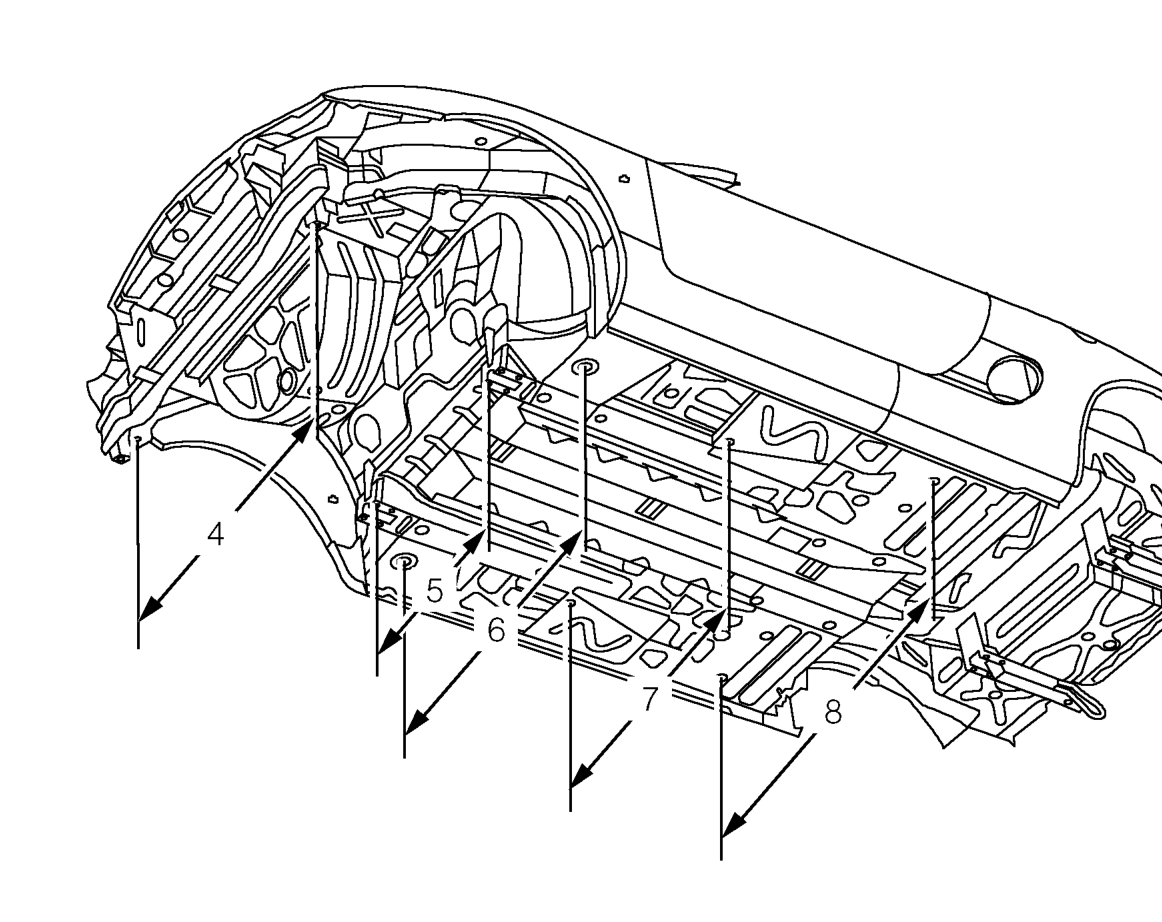

Transverse Dimensions - continued
| Location | Dimension | Reference |
|---|---|---|
| Front subframe forward mount inner hole right hand to left hand Front subframe rear mount inner hole right hand to left hand Floor longitudinal reinforcement to dash side jig hole right hand to left hand Main floor lower reinforcement plunge hole right hand to left hand Main floor drain hole right hand to jig hole left hand | 1020mm 586mm 970mm 838mm 1100mm | 4 5 6 7 8 |
All dimensions taken at centre line of set screw, set screw hole or jig hole.
