Transverse dimensions
- Make
- MG
- Model
- MGF Body Repair Manual
- Year
- 1995–2000
- Section
- Body dimensions › Transverse dimensions
InformationTransverse dimensions

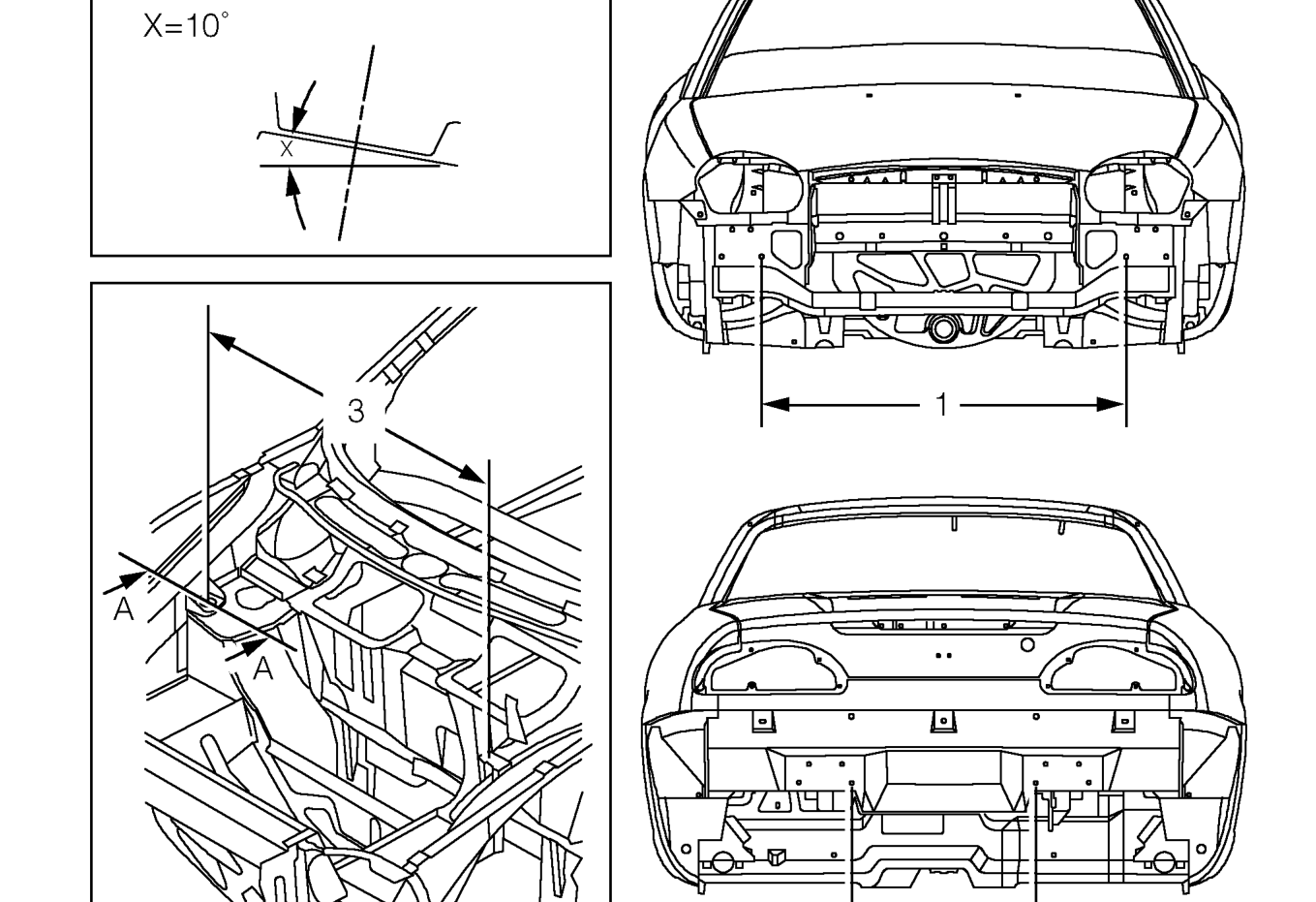

TRANSVERSE DIMENSIONS
| Location | Dimension | Reference |
|---|---|---|
| Front bumper mounting inner hole right hand to left hand Rear bumper mounting inner hole right hand to left hand Front suspension damper mount right hand to left hand | 992mm 497mm 961.5mm | 1 2 3 |
All dimensions taken at centre line of set screw, set screw hole or jig hole.
