MG TF Factory Workshop Manual (2002-2005)18 · Body
18 · Body & interior

Hood outer cover (page 2 of 5)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Hood
BodyHood outer cover · page 2 of 5

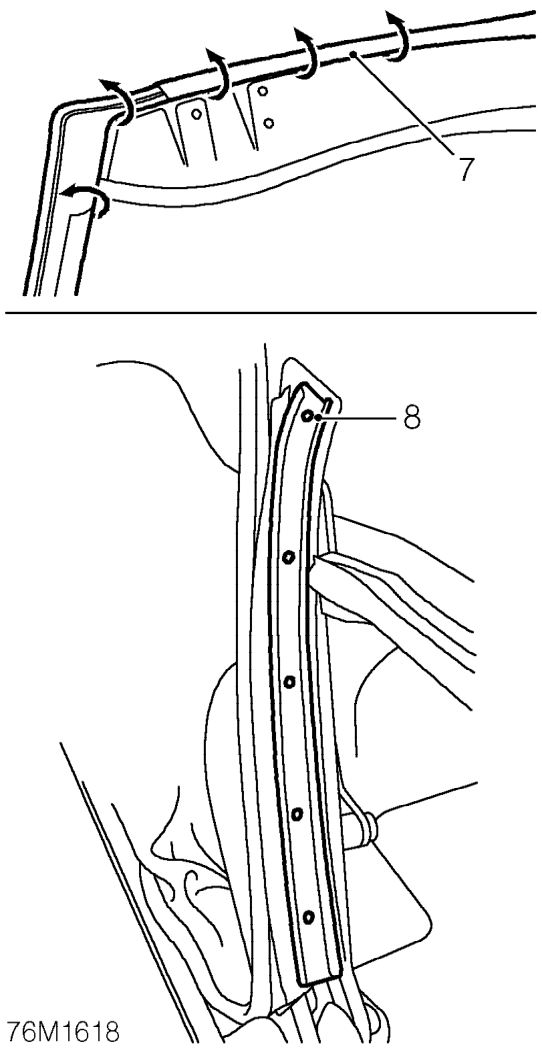

Diagram
  1. Release outer cover from adhesive on underside of header rail.
  2. Drill out 5 pop rivets securing each ’B’ post seal retainer. Collect retainers.

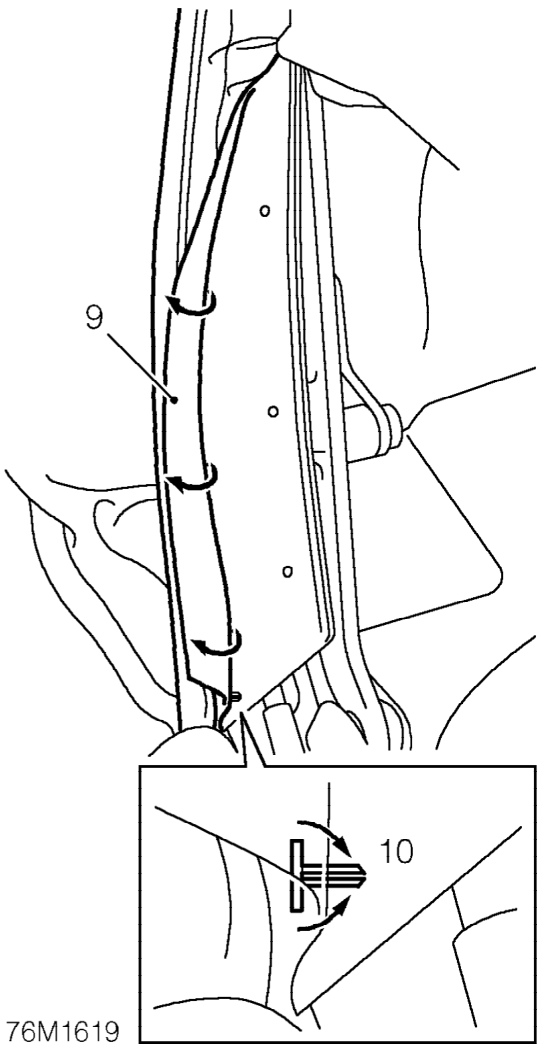

Drill out 5 pop rivets securing each ’B’ post seal retainer. Collect retainers.
  1. Release outer cover from adhesive on ’B’ post brackets.
  2. Bend up tabs and release ’rivet’ plates securing outer cover to base of ’B’ post brackets.
  3. Raise hood frame.
